FAQ 001078 EN

1 December 2017

Robert Vogl Calculation RFEM

Should the elastic surface foundation of the contact stresses σz be relative to a global or a local coordinate system?


Elastic surface foundations always refer to the local coordinate system of the surface.

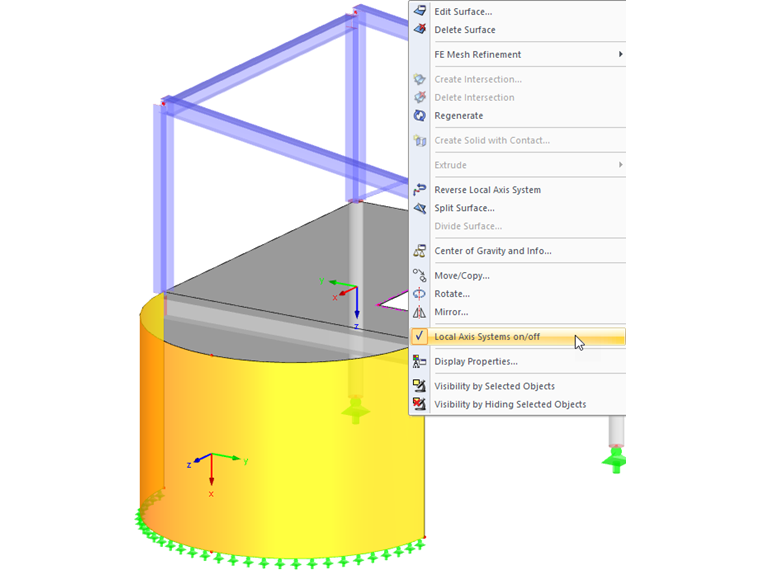

You can display the local coordinate systems by using the shortcut menu. right-click the surface and then select the 'Local Axis Systems on/off' option.


elastic surface foundation contact stress coordinate system axis system
