FAQ 001100 EN

Modeling | Structure RFEM

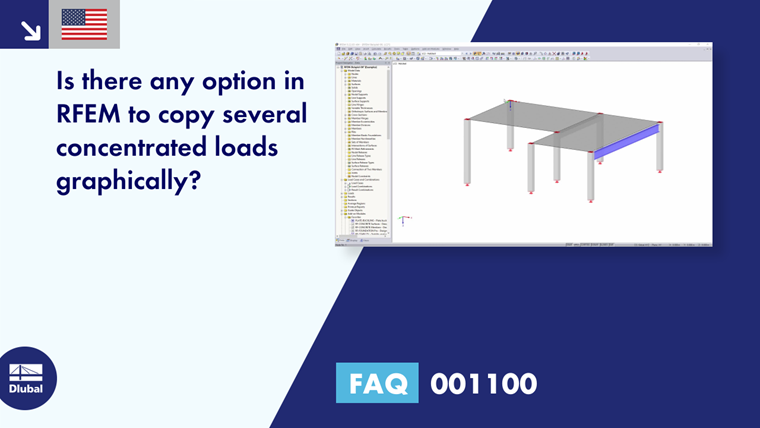

Is there any option in RFEM to copy several concentrated loads graphically?

Answer

First, select the nodes of the individual loads that you want to copy while pressing the [Ctrl] key.

Now click the [Move and/or Copy] button.

In the opening window, specify the number of the copies as well as the displacement vector. In the "Detail Settings for Move/Rotate/Mirror" dialog box, select the "Copy including loading" check box.

Click [OK] to copy all previously selected individual loads by the specified vector.
