Which units are specified in the result display of the support reactions (kN or kN/m)? A note about this is missing in the graphic.

In the case that the support reactions are given in kN/m, for which distance does the value apply?

Answer

The units of the node and line supports can be seen in the max/min info. For the support forces, for example, is used the unit kN/m, and for the support moments kNm/m.

The note about this is not preset in the graphic because the results of internal forces can also be displayed in the graphic at the same time. To activate the output of units, enter the 'Project Navigator - Display' - 'Results' - 'Result Values'.

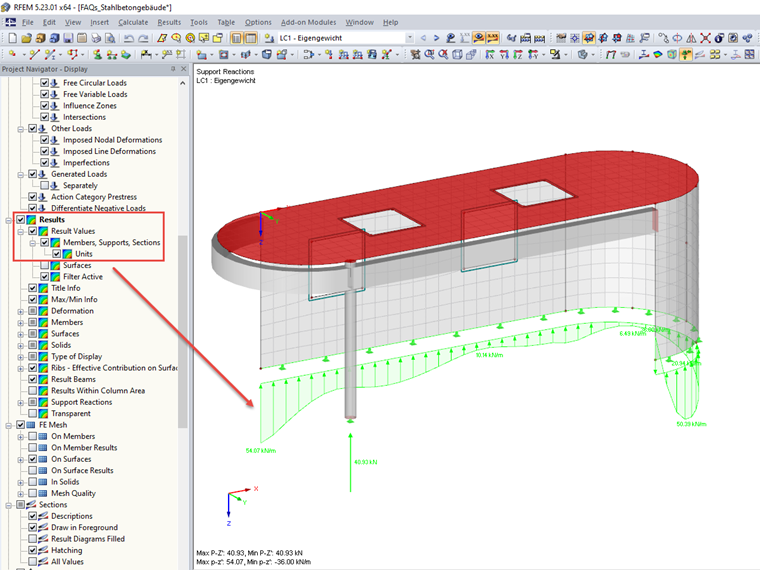

Figure 01 - Project Navigator - Display

Value refers to a distance of 1 m.

A partial value is specified in each FE Mesh Node. There is displayed, so to speak, a snapshot of the line support.

Keywords

Results Units Support reaction
