FAQ 002016 EN

Calculation RF-STABILITY RSBUCK 5.xx 8.xx

I would like to calculate effective lengths of a frame column in the frame plane using RSBUCK or RF-STABILITY. Which load case LC or load combination CO should I enter?

Answer

The modules perform the eigenvalue analysis for the entire model with a certain axial force state. Depending on the number of eigenvalues required, the programs provide results of crictical load factors with the corresponding buckling shapes for an eigenvalue, and effective length about the major and minor axis for each member per mode shape.

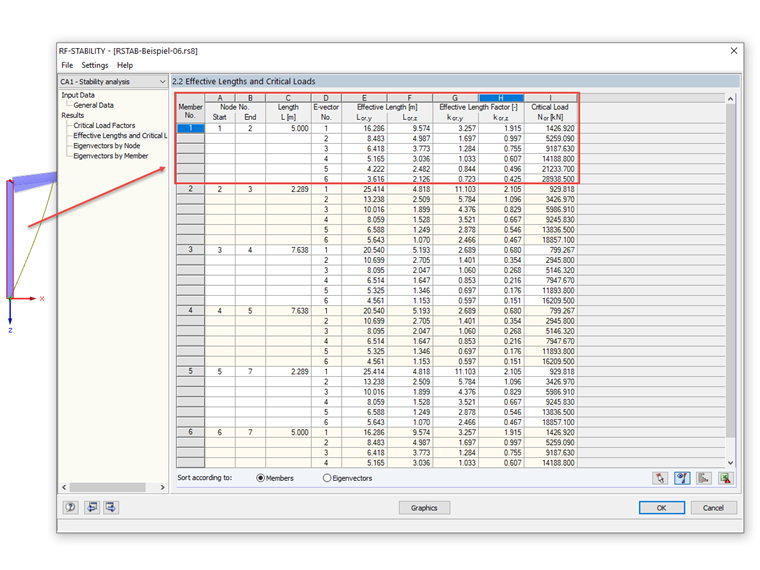

Since each load case LC and each load combination CO often has a different axial force state in the elements available, there is a separate respective effective length result for each load situation of the frame column concerned. The effective length, which causes the column in the frame plane buckles sideway in the buckling shape, is the correct length to be used for the analysis of the load situation.

However, this result may be different because of various load situation in each analysis, the longest effective length of all analyses performed applies in the design on the safe side equally for all load situations.

Key words

effective length, load case, eigenvalue, column
