FAQ 002070 EN

Licensing & Authorisation RFEM RSTAB 5.xx 8.xx

I would like to use our network licence via VPN. What should I pay attention to?

Answer

If the client does not find the server in network automatically (for example because of different subnets or in the case of access via VPN connection), you have to enter the server IP on the client manually.

For this configuration, you can use the Admin Control Center (ACC), which is accessible on the client under the following link: http://localhost:1947

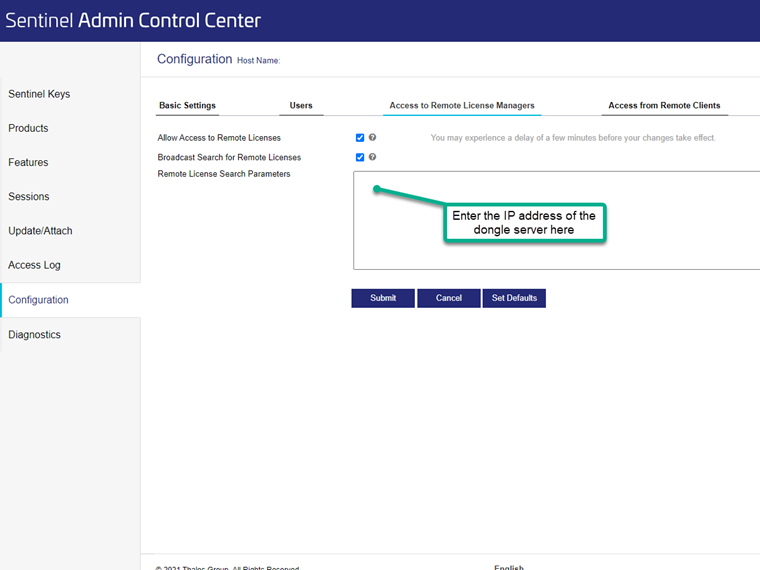

Enter the server IP under "Configuration" -> "Acess to Remote License Managers" and confirm it by clicking [Submit]. This configuration can be used for the Sentinel network dongle.

Keywords

VPN, network licence
