Is it possible to place the description of cross-sections and materials in the middle of a member?

Answer

In Display Properties, you can set the relative position of the member information.

  • Select the category 'Model Data → Members → Members of type Beam' on the left.
  • Define the category under 'Numbering' in the middle part of the dialog box, for example 'Cross-Sections'.

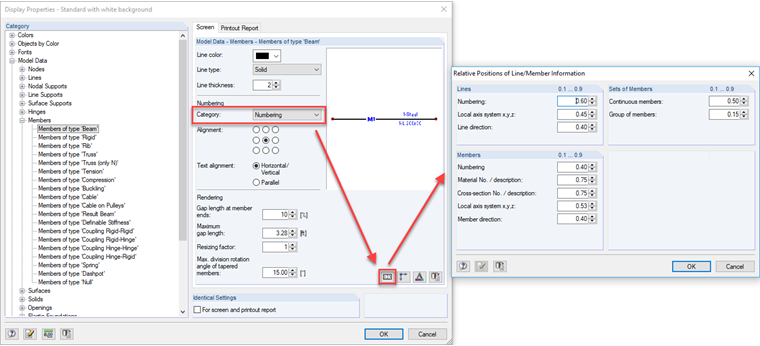

  • Then, click the button [123] 'Edit Positions of Line/Member Information' on the bottom right, see figure.
  • In the following dialog box, you can edit the relative positions of the member information. For example, enter 0.50 to place the cross-section description in the middle of the member.

Keywords

description numbering cross-section description material description continuous member distance
