How can you hide the name of cuts?

Answer

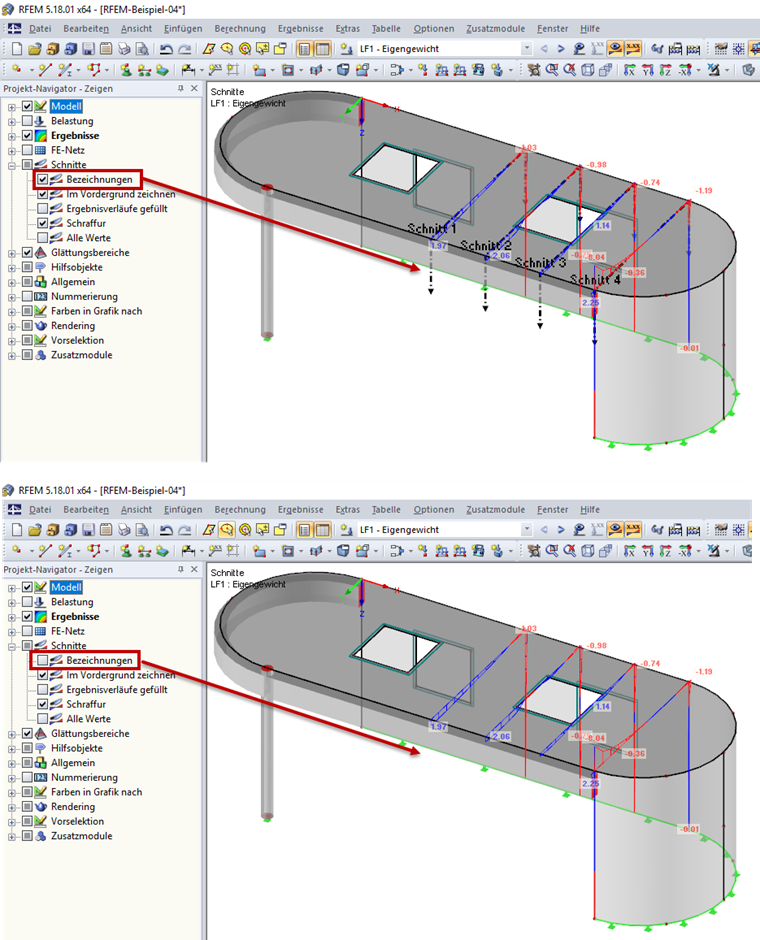

The designation of all sections can be hidden in the Project Navigator - Show by selecting the section -> Designations is disabled (see Figure 1).

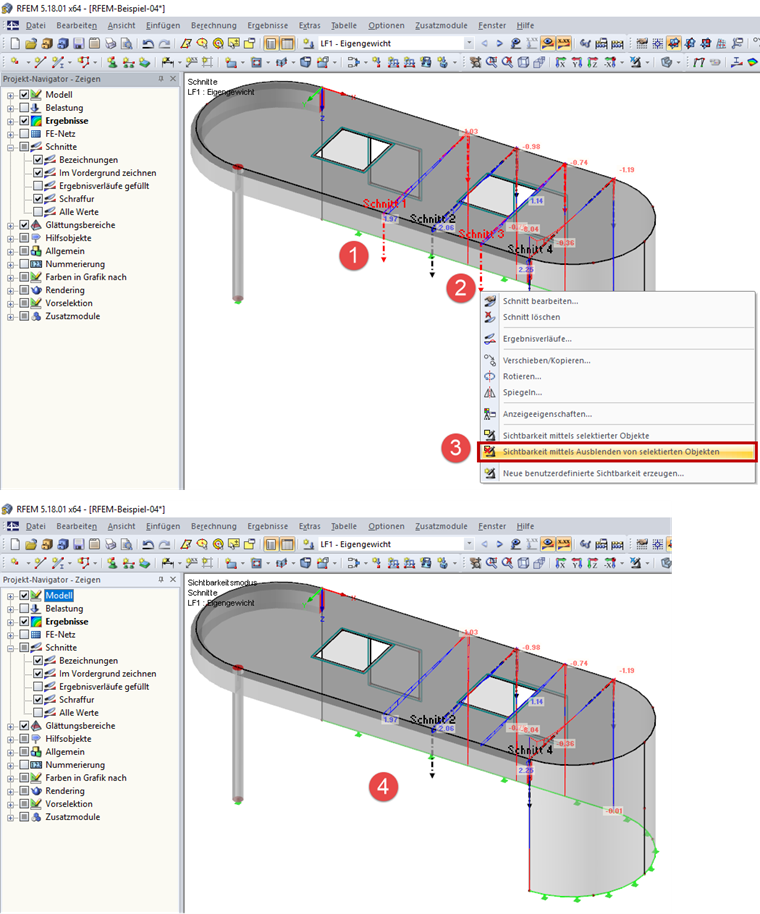

If only the names of individual sections are to be hidden, they must first be selected (see steps 1 and 2 in Figure 2). Then select the command "Visibility by hiding selected objects" (see step 3 in Figure 2).
