Draw in XY Plane

Figure 01 - Draw in XY Plane

FAQ 002859 EN

9 April 2019

Walter Fröhlich Results RFEM Finite Element Analysis

For the interpretation of results and documentation, I would like to display the vertical line support results clearly arranged in plan view.
Which setting should be selected for this?

Answer

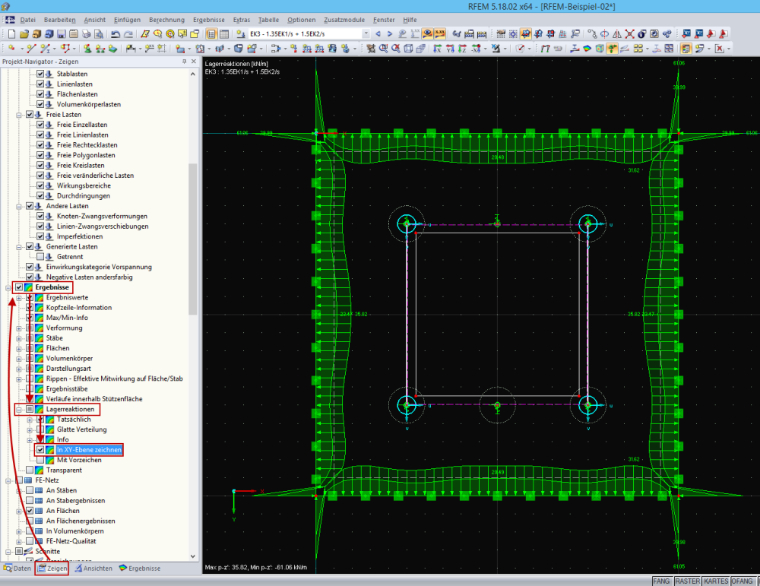

In the Display navigator in the Results -> Support Reactions dialog section, you can activate the "Draw in XY plane" option

Keywords

Line supports Results Top view Z-View p-z
