I would like to model and compare a connection with the FRAME-Pro, but I have problems with the bolt spacings. Are there any other bolt spacings that I might overlook?

Answer

The difference may be due to the dimensions of the standard wrench. Due to this, minimum dimensions are required in some places, which prevent the exact adjustment.

RF- / FRAME-JOINT Pro checks whether the wrench dimensions allow the connection to be mounted. The standard dimensions or a user default can be used here.

To ensure screwability, the dimensions D and L of a common socket wrench insert, as well as b and h of a torque wrench, are shown.

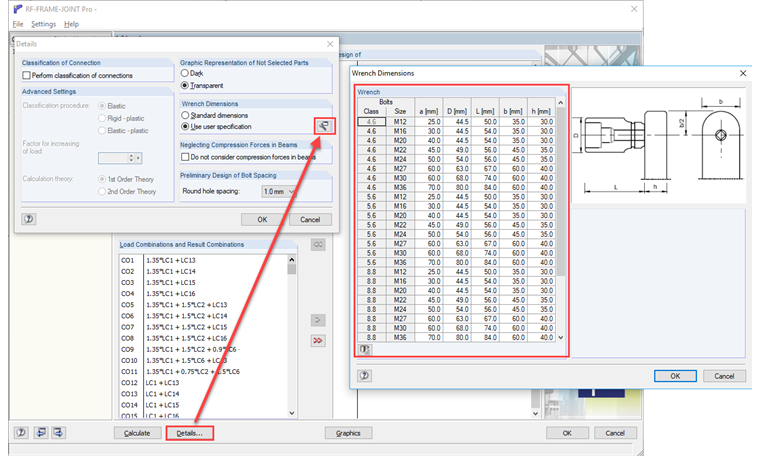

However, you can change these dimensions to the desired dimensions. To open the corresponding dialog box, use the "Details" button and the button labeled "Spanner Dimensions" (see Figure 1).
