My model is unstable. What could be the reason?

Answer

A calculation break‑off due to an unstable system can have different reasons. On one hand, it can indicate a "real" instability due to overloading the structural system; on the other hand, modeling inaccuracies may also be responsible for this error message. In the following text, you can find a possible procedure for finding the cause of the instability.

1. Modeling Check

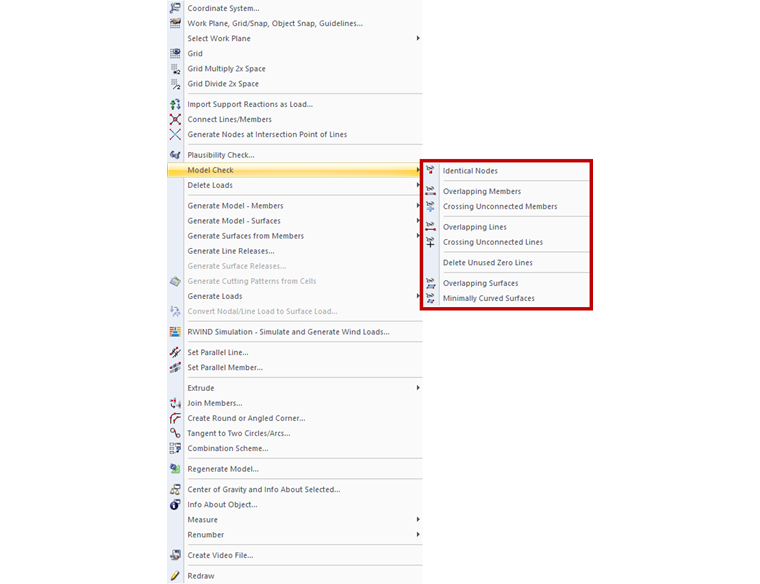

First, you should check if the modeling of the structural system is correct. We recommend using the model check tools provided by RFEM/RSTAB (Tools → Model Check). For example, these options allow you to find identical nodes and overlapping members, so you can delete them, if necessary.


Furthermore, you can calculate the structure subjected to pure dead load in a load case according to the linear static analysis, for example. If results are displayed subsequently, the structure regarding the modeling is stable. If this is not the case, the most common causes are listed below (see also the "Model Check" video under "Downloads"):

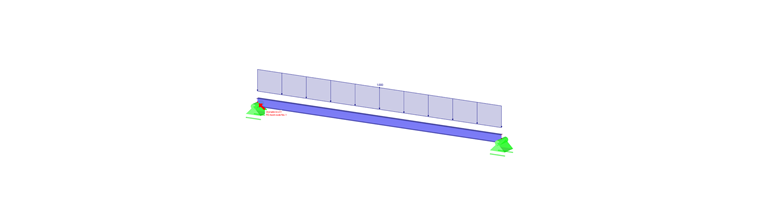

  • Incorrect Definition of Supports / Lack of Supports
    This can lead to instabilities, as the structure is not supported in all directions. Therefore, the support conditions must be in equilibrium with the structural system as well as with the external boundary conditions. Statically underdetermined systems can also lead to calculation aborts due to a lack of boundary conditions.



  • Torsion of Members About Their Own Axis

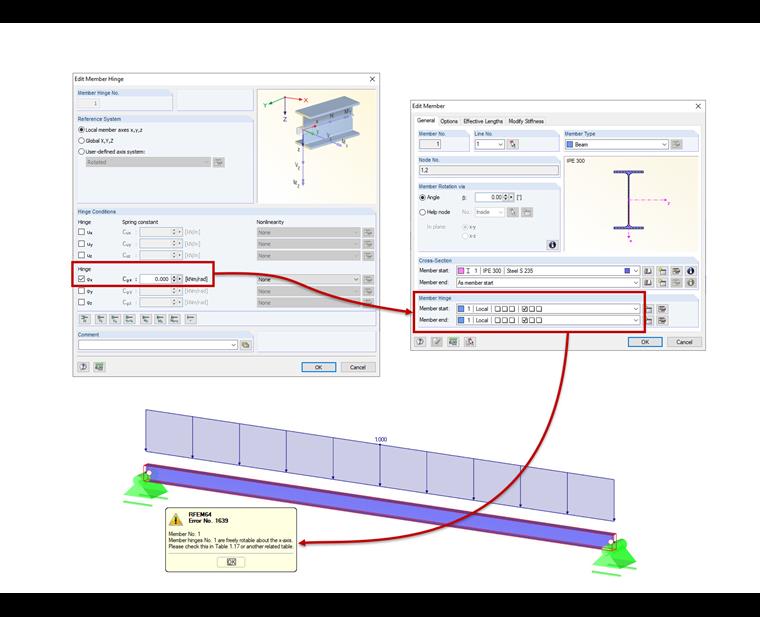

    If members rotate about their own axis - that is, a member is not supported about its own axis - this can lead to instabilities. This is often caused by the settings of member hinges. Thus, it may happen that the torsional releases are entered at both the start node and the end node. However, you should pay attention to the warning that appears when starting the calculation.



  • Missing Connection of Members

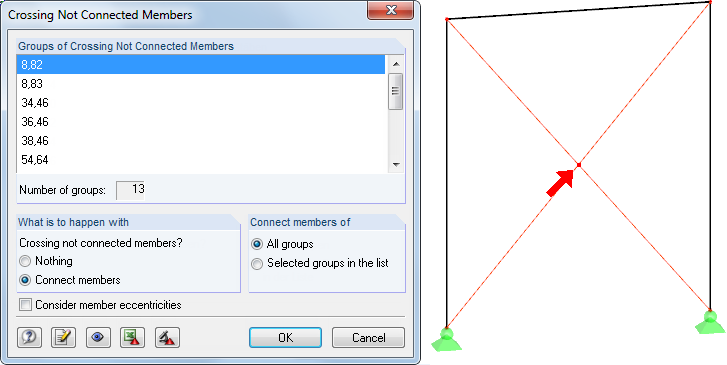

    In the case of large and complex models in particular, it may quickly happen that some members are not connected to each other, and thus they "float in the air". Also, if you forget about crossing members that should intersect with each other, this can lead to instabilities as well. A solution provides the model check of "Crossing Unconnected Members", which searches for members that cross each other, but do not have a common node at the intersection point.



  • No Common Node

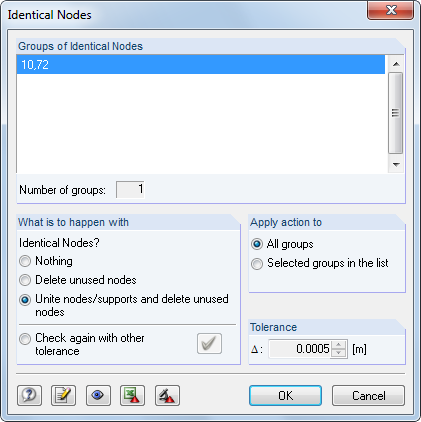

    The nodes rest apparently at the same location, but on closer inspection, they deviate slightly from each other. This is often caused by CAD imports, and you can correct it using the model check.

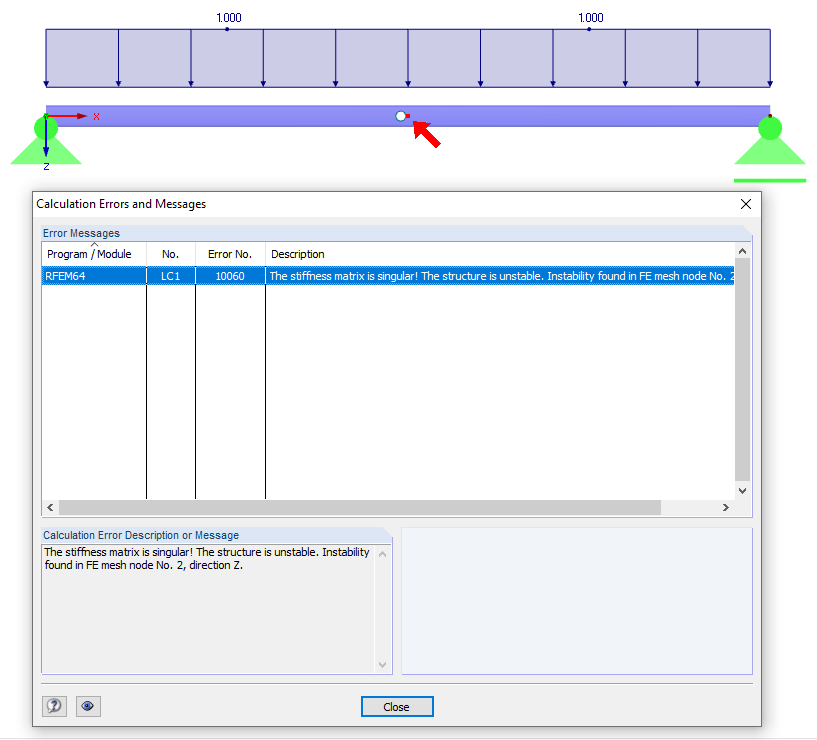

  • Formation of Hinge Chain
    Too many member end hinges on a node can cause a hinge chain that leads to a calculation abort. For each node, only n‑1 hinges with the same degree of freedom relative to the global coordinate system may be defined, where "n" is the number of connected members. The same applies to line releases.

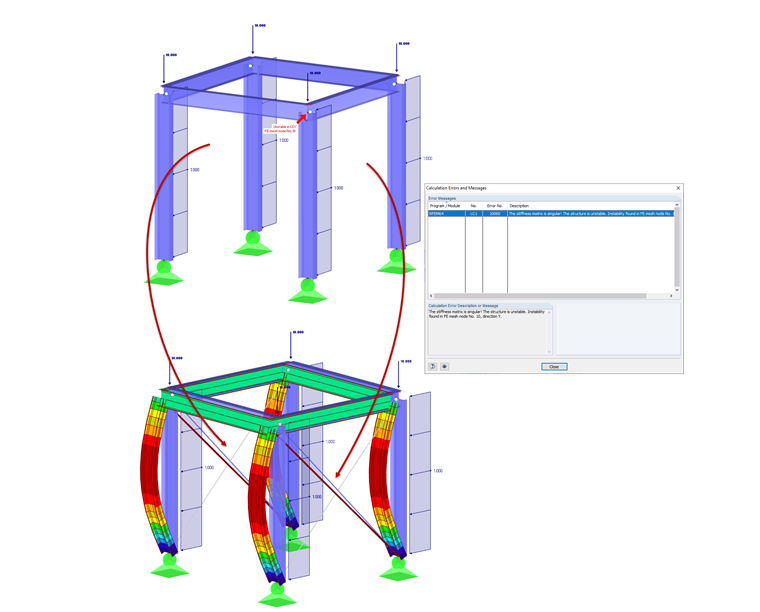

2. Check of Stiffening

If the stiffening is missing, it may also lead to calculation aborts due to instabilities. Therefore, you should always check whether the structure is stiffened sufficiently in all directions.


3. Numerical Problems

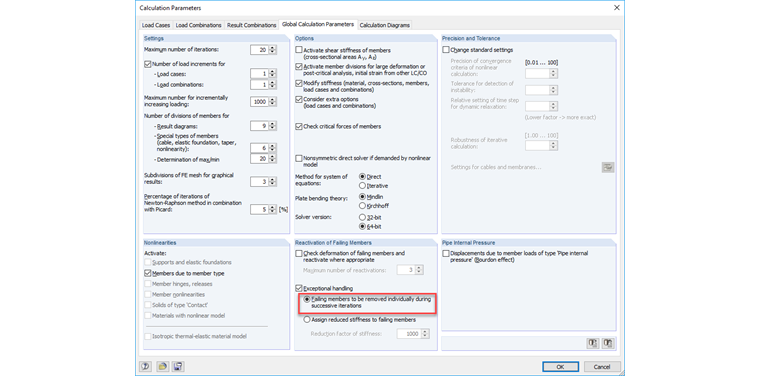

An example of this is shown in Image 08. It is a hinged frame that is stiffened by tension members. Because of the column contractions due to vertical loads, the tension members receive small compressive forces in the first calculation step. They are removed from the structure (since only tension can be absorbed). In the second calculation step, the model is unstable without these tension members. There are several ways to solve this problem. You can apply a prestress (member load) to the tension members in order to "eliminate" the small compressive forces, assign small stiffness to the members, or remove the members one by one in the calculation (see Image 08).


4. Detecting Causes of Instability


  • Automatic Model Check with Graphical Result Display

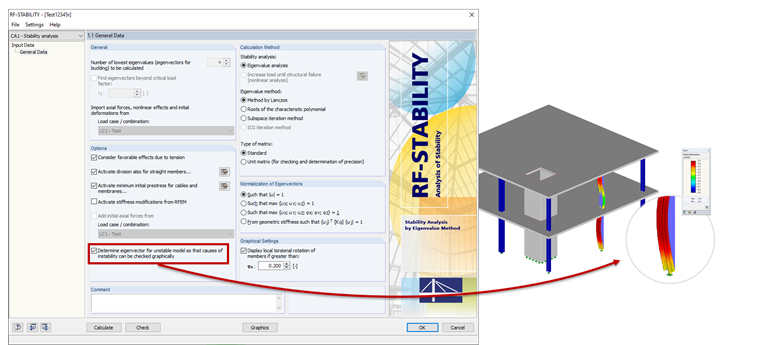

    The RF‑STABILITY (RFEM) add-on module can help you to obtain the graphical display of the instability cause. Select the "Calculate eigenvector for unstable model…" (see Image 09), and it is possible to calculate the unstable structure. The eigenvalue analysis is performed on the basis of the structural data so that the instability of the affected structural component is displayed graphically as a result.



  • Critical Load Problem
    Is it possible to calculate load cases or load combinations according to the first-order analysis and the calculation only increases from the second-order analysis onwards. Order, there is a stability problem (critical load factor less than 1.00). The critical load factor indicated which coefficient must be used to multiply the load so that the model subjected to a specific load becomes unstable (for example, buckling). It follows: A critical load factor smaller than 1.00 means that the structure is unstable. Only a positive critical load factor greater than 1.00 means that the load due to the predefined axial forces multiplied by this factor leads to the buckling failure of the stable structure. In order to find the "weak point," the following approach is recommended, which requires the RF‑STABILITY (RFEM) or RSBUCK (RSTAB) add-on module (see also the video "Critical Load Problem" under "Downloads").

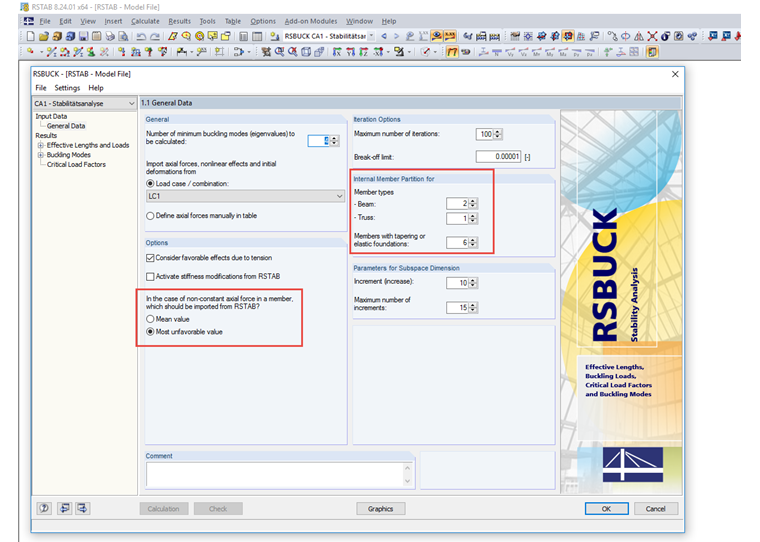

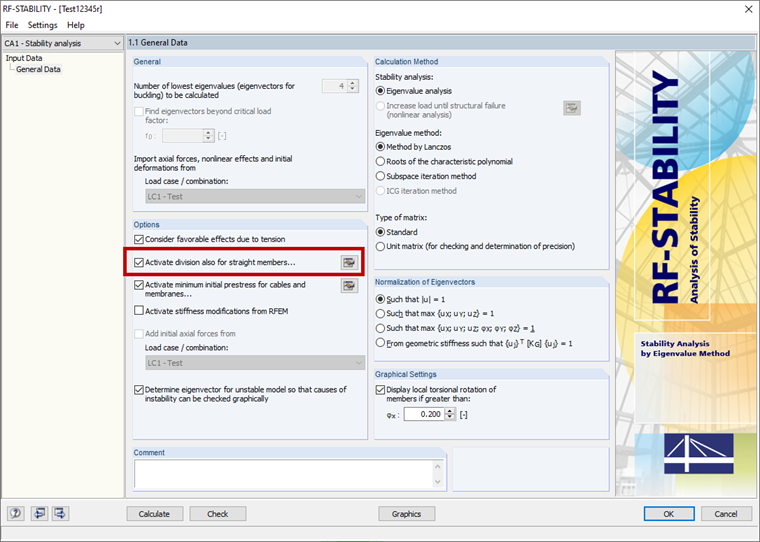

    First, it is necessary to reduce the load of the affected load combination until the load combination becomes stable. The load factor in the calculation parameters of the load combination can help. This also corresponds to the manual determination of the critical load factor if the RF‑STABILITY or RSBUCK add-on module is not available. In the case of pure linear structural elements, it may already be sufficient to calculate the load combination according to the geometrically linear analysis and select this directly in the add-on module. Then, the buckling curve or shape can be calculated and displayed graphically on the basis of this load combination in the corresponding add-on module. The graphical result display allows you to find the "weak point" in the structure and then optimize it specifically. By default, the RF‑STABILITY or RSBUCK add-on modules only determine global mode shapes. In order to also determine the local mode shapes, it is necessary to activate the member division (RF‑STABILITY), or to increase the division for trusses to "2" at least (RSBUCK).





Keywords

Instability System unstable Structure unstable Singularity Instability cause
