FAQ 003047 EN

6 May 2019

Markus Baumgärtel Modeling | Structure RFEM RSTAB

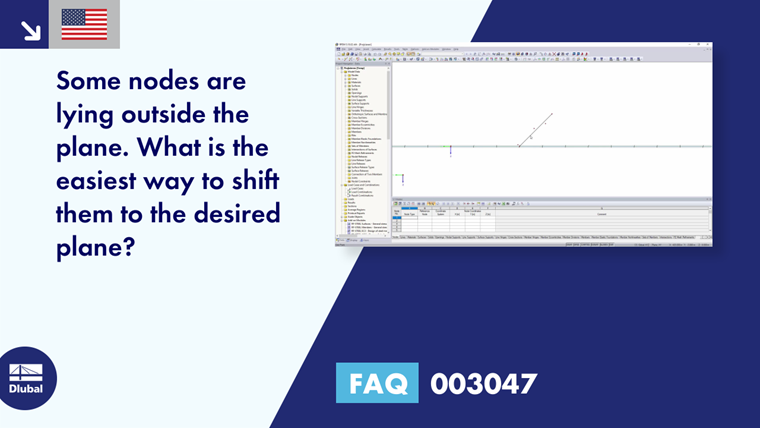

Some nodes lie outside a plane. What is the easiest way to shift it to the desired plane?

Answer

For planes that lie perpendicular to the global coordinate system, it is relatively easy, since a coordinate of all points in the plane must be identical. However, if the plane is a general plane of space, you have to create a user-defined coordinate system and then move the node in the user-defined coordinate system.

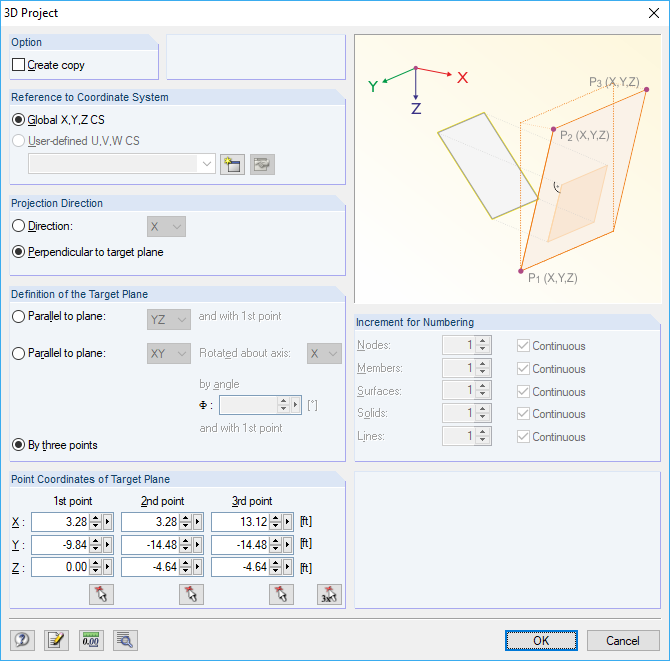

However, the fastest option is the "Project" function (see Video). This allows nodes that lie outside of the target plane to be quickly moved into them.

Keywords

Project Node outside plane Moving a node
