For some time, I have display problems in RSTAB and RFEM that make it difficult to work with the software. It mainly affects the result display. The lines are extended, dotted or not displayed at all, depending on whether I zoom in or out.
Do you have any idea how to solve this problem?

Answer

It might be advisable to (de)activate the hardware acceleration.

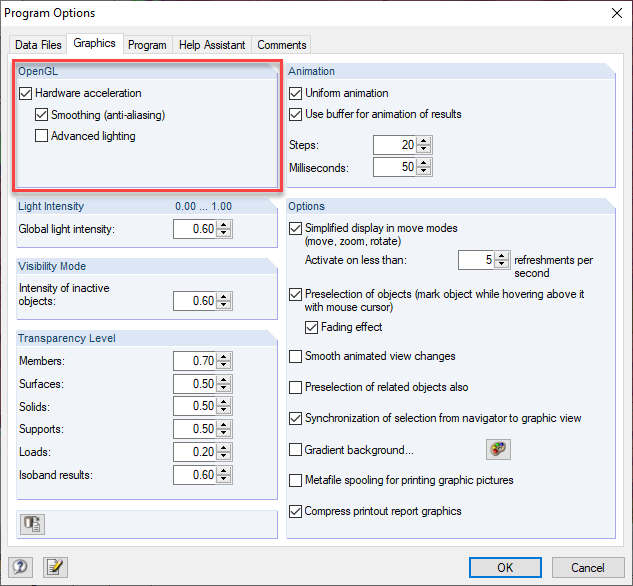

In RFEM and RSTAB, you can activate or deactivate the hardware acceleration (OpenGL) by using the menu "Options" → "Program Options" in the "Graphics" tab of the dialog box.
In addition, you can set the improved smoothing (antialiasing) in the same dialog box to prevent the edge effect. Both options are only activated after restarting the program.

There could also be the problem that the graphics card driver is outdated. Under certain circumstances, this may lead to problems when using RFEM and RSTAB. Therefore, please update the driver.



Keywords

OpenGL Hardware acceleration Graphics card driver
