Are the result values in the FE elements averaged or nodal values? Where can I set this?

Answer

When displaying the result values "Values on Surfaces", there are two distinctions.

The result values are displayed either on the "Grid and Manually Set Points" or on the "FE Mesh Points."

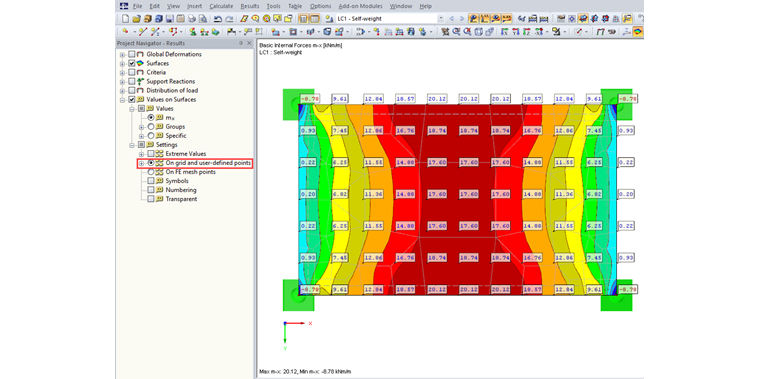

When displaying "In Grid and Manually Set Points", the results are displayed in the distance of the grid points.

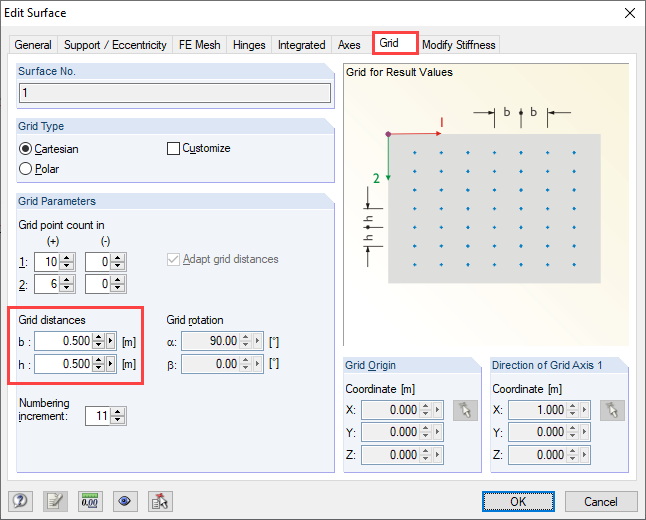

The distance of the grid points is a property of the surface and can be controlled in the "Edit Surface" dialog box.

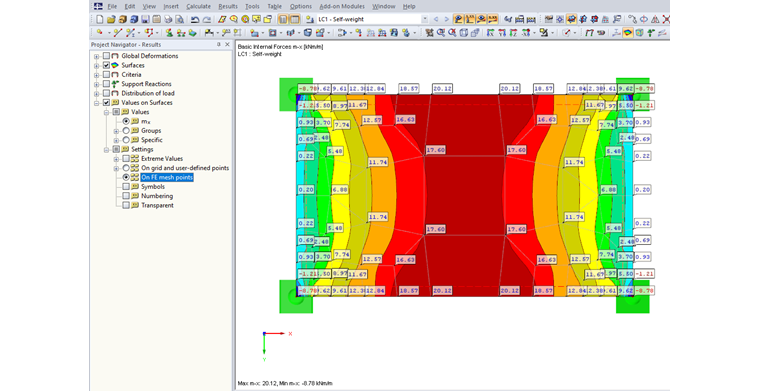

Alternatively, you can display the result values in "FE Mesh Points."


The number of FE mesh points depends on the generated FE mesh size.

You can control the displayed color gradient by selecting the option "Internal Forces/Stresses" in the Display navigator. See the FAQ below.
