Is it also possible to simulate an external steel structure in RWIND Simulation?

Answer

Yes, the RWIND Simulation program is generally designed and can implement any model of RFEM or RSTAB.

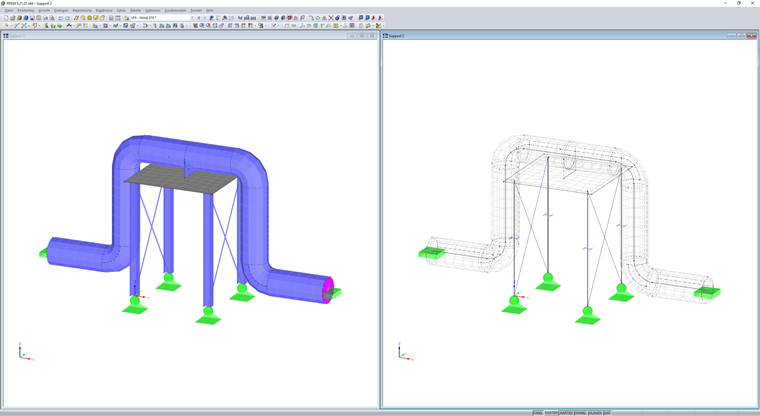

Figure 03 - RFEM Model

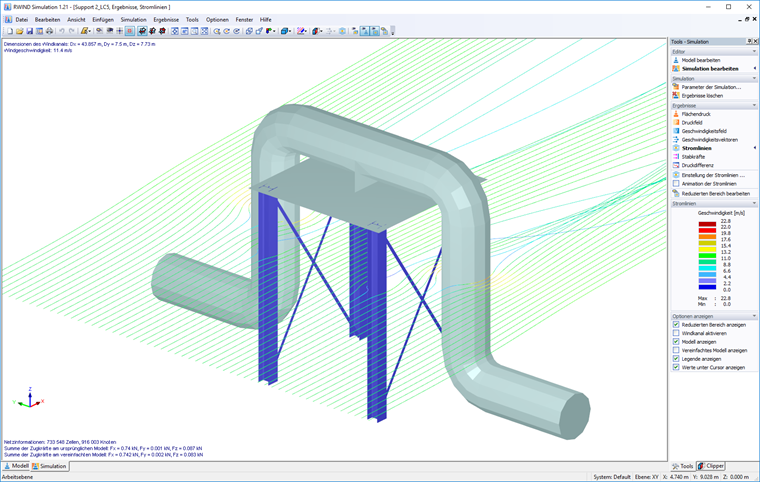

For a steel structure consisting of pure member elements, the program creates a coherent, voluminous envelope of the member surfaces for the numerical wind tunnel. The result of this modeling for the simulation depends on the available cross-sections and the mesh settings. Due to the wind current, corresponding surface pressures result on this surface layer.

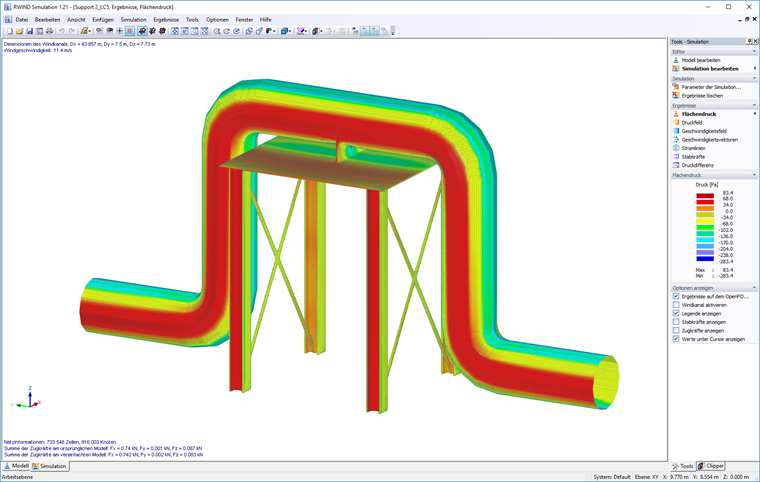

Figure 02 - Surface Pressure on OpenFOAM Mesh

After having calculated the wind flow, the program sums the surface pressures of the member units and returns a corresponding equivalent load (single, uniform, or trapezoidal) for each member axis.

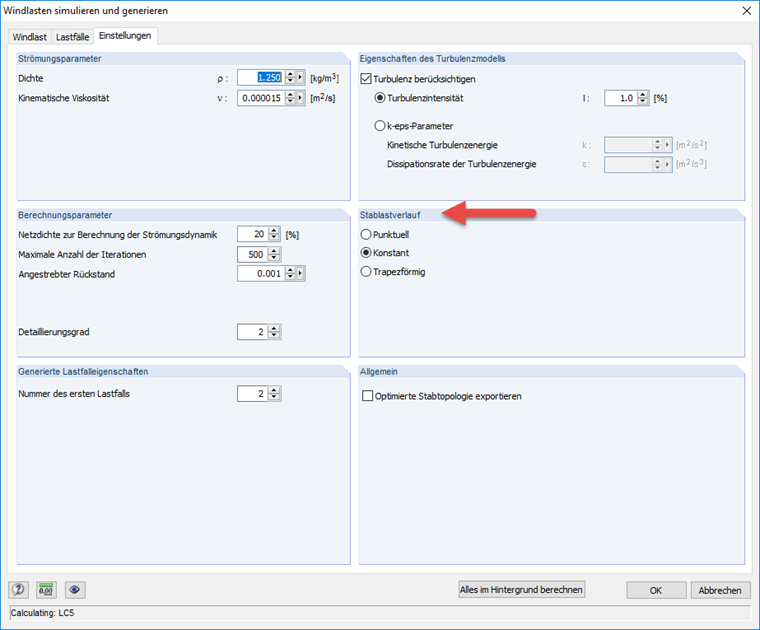

Figure 04 - Options for Member Load Distribution

These loads are applied in RFEM or RSTAB for the further calculation of internal forces.

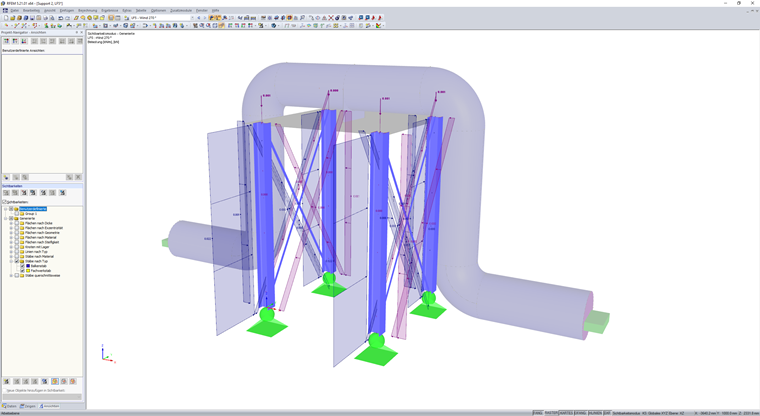

Figure 05 - Equivalent Load from RWIND Simulation
