Why does an eccentrically set member receive axial forces although it is only loaded by shear forces?

Answer

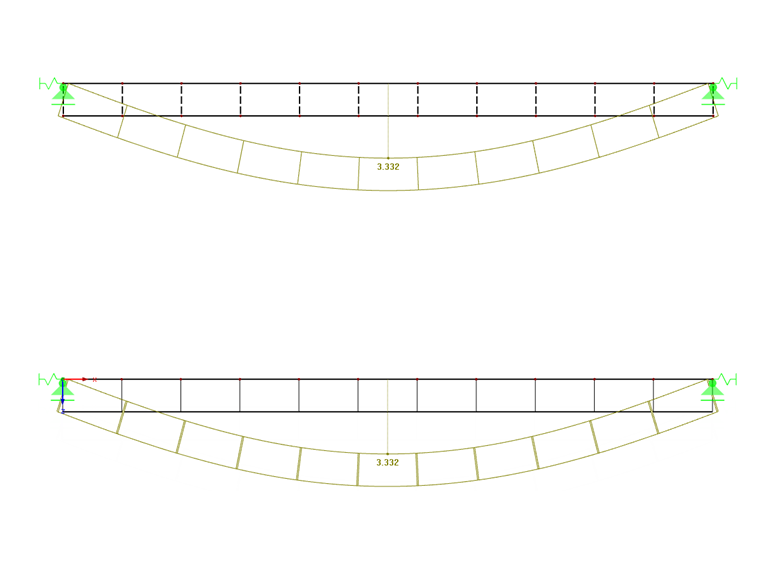

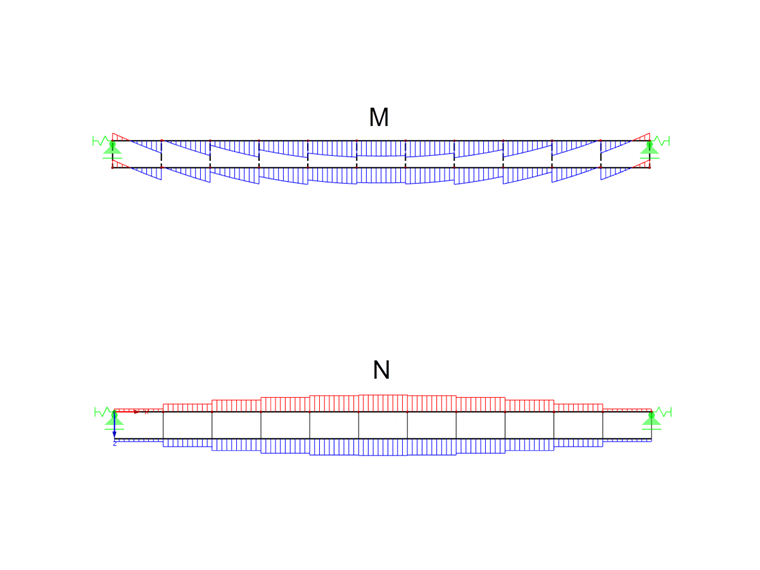

If a member is connected eccentrically to a surface or to another member, you can also imagine that each node (RSTAB) and each FE node (RFEM) of each element is coupled with a member (see Figure 01 above). . The result is identical to that of the defined eccentricities (see Figure 01 below). The system shown in the picture is nothing more than a truss with a top flange and a bottom flange connected by verticals. As is known, the flanges are increasingly subjected to axial forces rather than bending moments due to the geometry (see Figure 02).
