Question

How can I create a user-defined coordinate system via the COM interface and assign it to a nodal support?


Answer:

For programming using the COM interface, a nodal support has the properties "ReferenceSystem" and "UserDefinedReferenceSystem". "ReferenceSystem" allows you to define the type of the user-defined coordinate system (for example, "Rotated" or "Coordinate System"), and depending on which type has been selected, this type is then defined via "UserDefinedReferenceSystem".

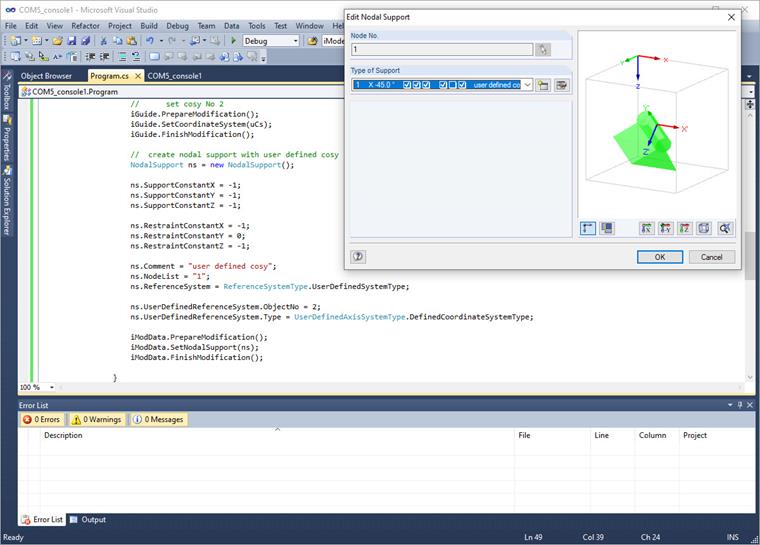

In the following example, "Coordinate system" was set as the type and a user-defined coordinate system was also created for it:

//  create user defined coordinate system
IGuideObjects iGuide = iModel.GetGuideObjects();

//  delete cosy No 2
UserCoordinateSystem[] csList = iGuide.GetCoordinateSystems();
if (csList.Length > 1)
{
    for (int i = 0; i < csList.Length; ++i)
    {
        if (csList[i].No == 2)
        {
            iGuide.PrepareModification();
            iGuide.DeleteObjects(GuideObjectType.CoordinateSystemObject, "2");
            iGuide.FinishModification();
        }
    }
}

//  define new cosy No 2
UserCoordinateSystem uCs = new UserCoordinateSystem();
uCs.Name = "test";
uCs.Comment = "test";
uCs.No = 2;
uCs.IsValid = true;

uCs.Origin.X = 1;
uCs.Origin.Y = 0;
uCs.Origin.Z = 1;

uCs.Point1.X = 2;
uCs.Point1.Y = 0;
uCs.Point1.Z = 1;

uCs.Point2.X = 1;
uCs.Point2.Y = 1;
uCs.Point2.Z = 2;

//  set cosy No 2
iGuide.PrepareModification();
iGuide.SetCoordinateSystem(uCs);
iGuide.FinishModification();

//  create nodal support with user defined cosy
NodalSupport ns = new NodalSupport();

ns.SupportConstantX = -1;
ns.SupportConstantY = -1;
ns.SupportConstantZ = -1;

ns.RestraintConstantX = -1;
ns.RestraintConstantY = 0;
ns.RestraintConstantZ = -1;

ns.Comment = "user defined cosy";
ns.NodeList = "1";
ns.ReferenceSystem = ReferenceSystemType.UserDefinedSystemType;

ns.UserDefinedReferenceSystem.ObjectNo = 2;
ns.UserDefinedReferenceSystem.Type = UserDefinedAxisSystemType.DefinedCoordinateSystemType;

iModData.PrepareModification();
iModData.SetNodalSupport(ns);
iModData.FinishModification();

To be able to create the coordinate system, the interface for the guide objects is required: 'IGuideObjects'. With the "DeleteObjects()" function, an existing coordinate system of Number 2 is first deleted and a new one is created with "SetCoordinateSystem()." Please take note of the "Prepare/Finish-Modification" block in order to be able to transfer the new element.

The nodal support is transferred via the "IModelData" interface. Again, the "Prepare/Finish-Modification" block is required.
