Sharing Violation in SHAPE-THIN

Back to FAQ

FAQ 005036 | I encountered a sharing violation while importing a dxf file into SHAPE-THIN. What i...

FAQ Explanatory Video

01

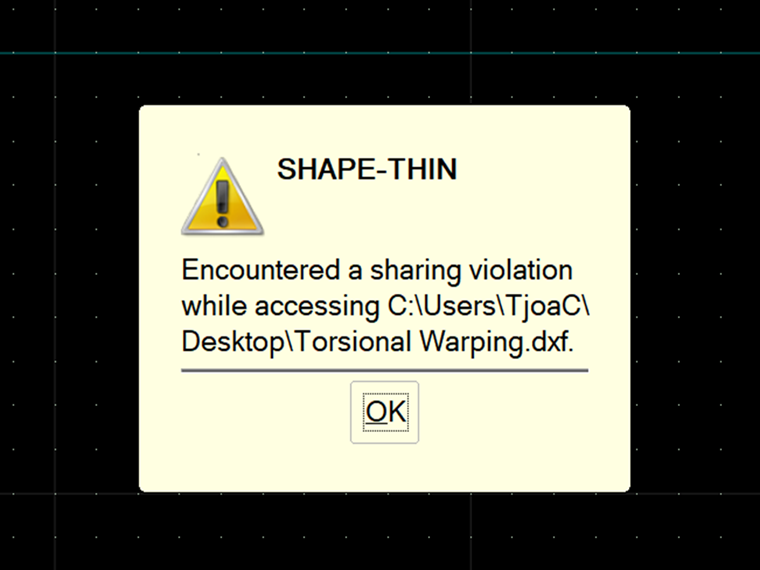

Error Message

Back to FAQ

4 August 2021

005036

Aluminum & Lightweight Structures

Cold-Formed Sections

I encountered a sharing violation while importing a dxf file into SHAPE‑THIN. What is the issue?

Answer

The dxf file is currently being used by another program such as CAD. Close the file and import the file again.

Keywords

SHAPE-THIN Import DXF
