Instability

My model is unstable. What could be the reason?


Answer:

A calculation break‑off due to an unstable system can have different reasons. On one hand, it can indicate a "real" instability due to overloading the structural system; on the other hand, modeling inaccuracies may also be responsible for this error message. In the following text, you can find a possible procedure for finding the cause of the instability.

1. Modeling Check

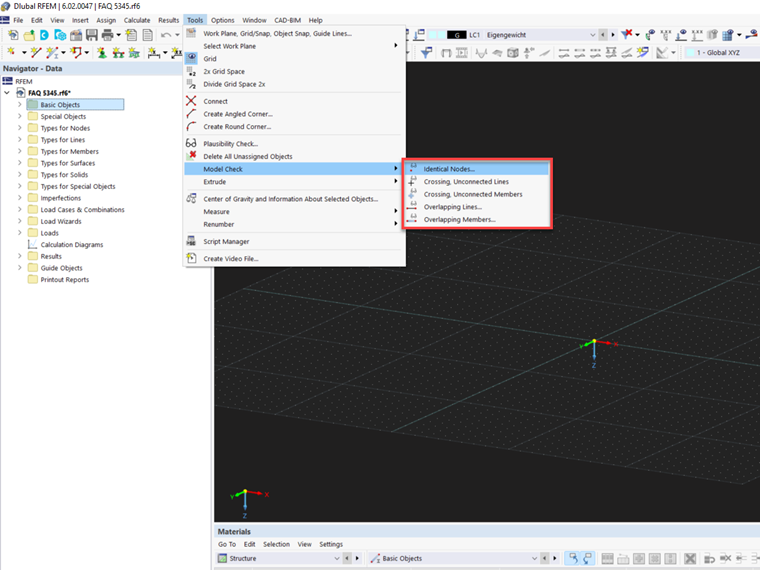

First, you should check if the modeling of the structural system is correct. You can use the model check tools available in RFEM or RSTAB (Tools → Model Check) for this purpose. This way, you can find, for example, the identical nodes or overlapping members, and fix them, if necessary.

Furthermore, you can calculate the structure subjected to pure dead load in a load case according to the linear static analysis, for example. If results are displayed, the structure regarding the modeling is stable. If this is not the case, the most common causes are listed below:

  • Incorrect Definition of Supports / Lack of Supports

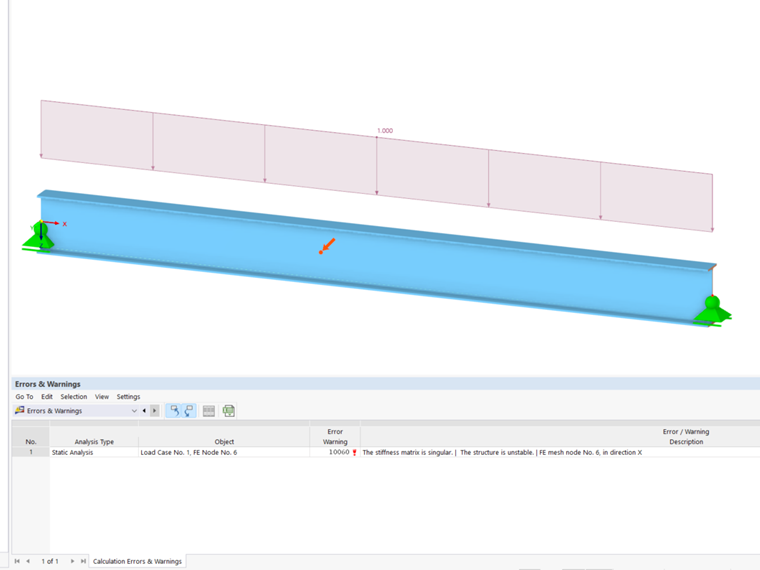

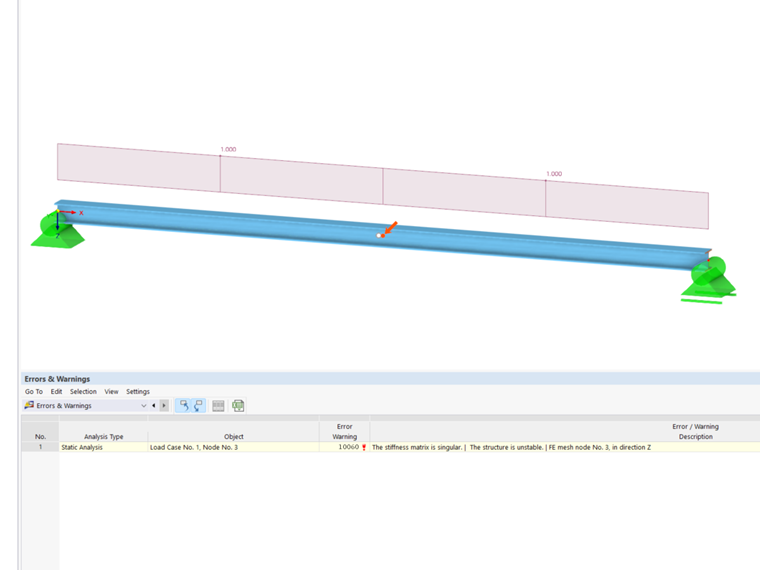

This can lead to instabilities, as the structure is not supported in all directions. Therefore, the support conditions must be in equilibrium with the structural system as well as with the external boundary conditions. Statically underdetermined systems can also lead to calculation aborts due to a lack of boundary conditions.

  • Torsion of Members About Their Own Axes

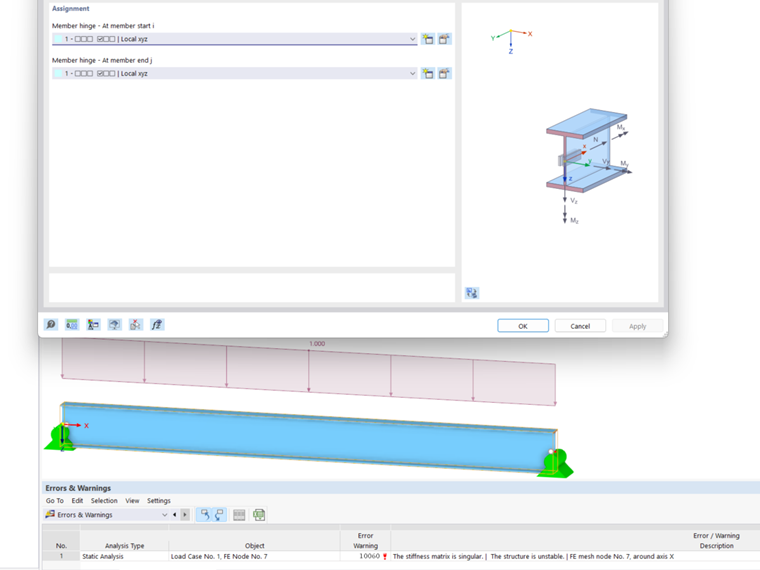

If members rotate about their own axes, that is, a member is not supported about its own axis, this can lead to instabilities. This is often caused by the settings of member hinges. Thus, it may happen that the torsional releases are entered at both the start node and the end node.

  • Missing Connection of Members

In the case of large and complex models in particular, it may quickly happen that some members are not connected to each other, thus they "float in the air." Also, if you forget about crossing members that should intersect with each other, this can lead to instabilities as well. A solution provides the model check of "Crossing Unconnected Members", which searches for members that cross each other, but do not have a common node at the intersection point.

  • No Common Node

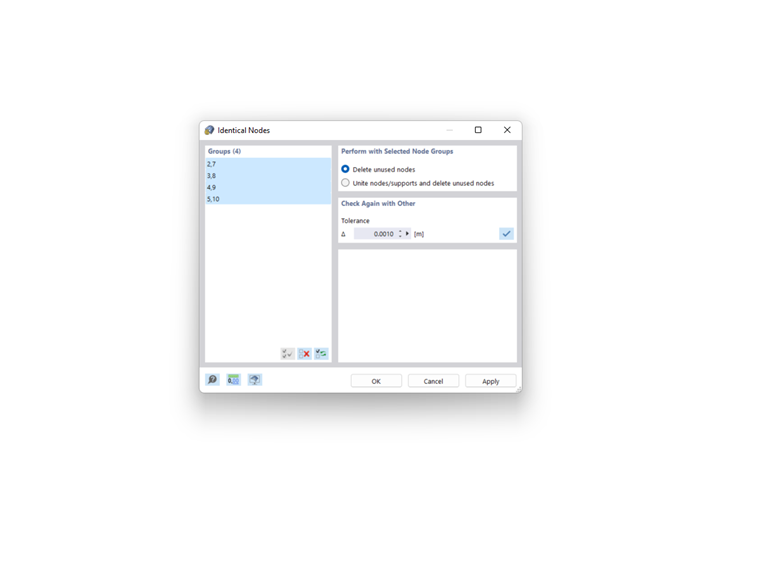

The nodes seem to be at the same location, but on closer inspection, they deviate slightly from each other. This is often caused by CAD imports, and you can correct it using the model check.

  • Formation of Hinge Chain

Too many member end hinges on a node can cause a hinge chain that leads to a calculation abort. For each node, only n‑1 hinges with the same degree of freedom relative to the global coordinate system may be defined, where "n" is the number of connected members. The same applies to line releases.

2. Check of Stiffening

If the stiffening is missing, it may also lead to calculation aborts due to instabilities. Therefore, you should always check whether the structure is stiffened sufficiently in all directions.

3. Numerical Problems

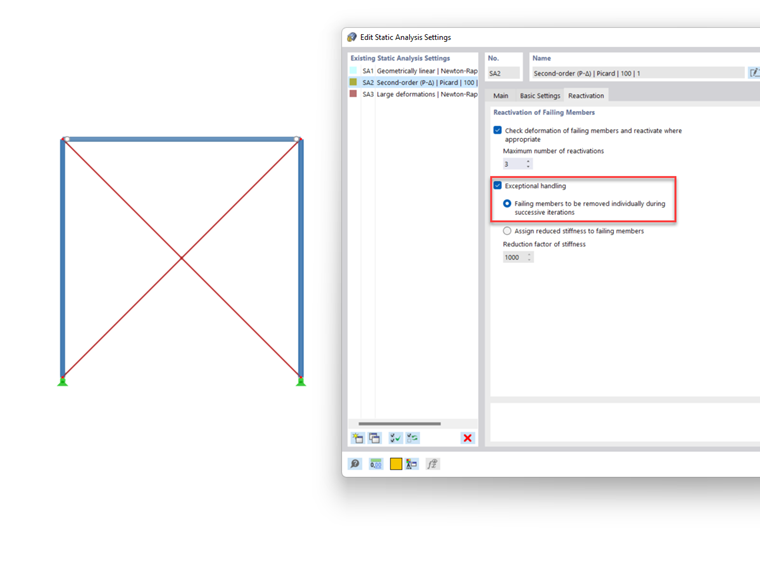

An example of this is shown as follows: A hinged frame is stiffened by tension members. Because of the column contractions due to vertical loads, the tension members receive small compressive forces in the first calculation step. They are removed from the structure (since only tension can be absorbed). In the second calculation step, the model is unstable without these tension members.

There are several ways to solve this problem. You can apply a prestress (member load) to the tension members in order to "eliminate" the small compressive forces, to assign small stiffness to the members, or also to remove the members one by one in the calculation. The calculation setting is automated in RSTAB 9, and it can be optionally activated in RFEM 6.

4. Detecting Causes of Instability

  • Automatic Model Check with Graphical Result Display

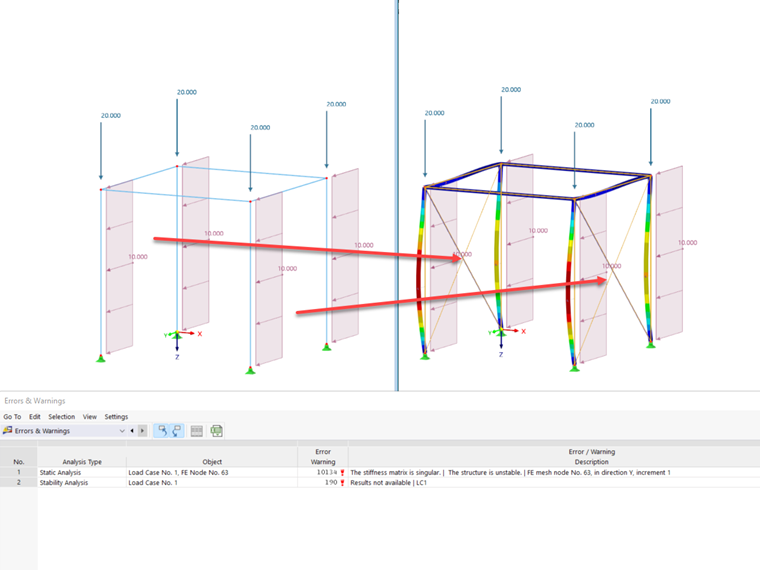

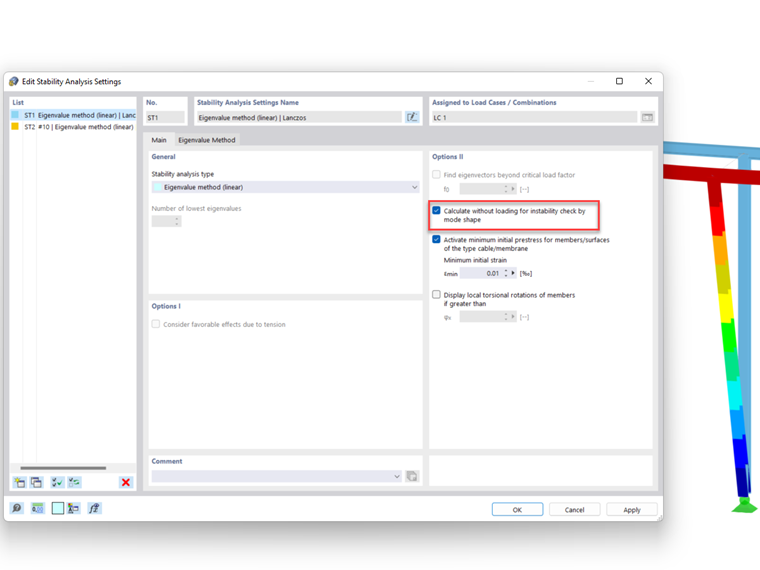

To get a graphical representation of the instability cause, the Structure Stability add-on can help you. Select the "Calculate eigenvector for unstable model…", and it is possible to calculate the unstable structure. An eigenvalue analysis is performed using the structural data so that the instability of the affected structural component is displayed graphically as a result.

  • Critical Load Problem

If load cases or load combinations are calculated according to the geometrically linear analysis, and the calculation is only aborted as of the second-order analysis, there is a stability problem (critical load factor less than 1.00). The critical load factor indicates the factor by which the loading must be multiplied in order for the model to become unstable (for example, buckling) under the corresponding load. Consequently: A critical load factor smaller than 1.00 means that the structure is unstable. Only a positive critical load factor greater than 1.00 means that the load due to the predefined axial forces multiplied by this factor leads to the buckling failure of the stable structure. In order to be able to find the "weak point", the following procedure is recommended, which requires the Structure Stability add-on.

First, it is necessary to reduce the load of the affected load combination until the load combination becomes stable. The load factor in the calculation parameters of the load combination can help. This also corresponds to a manual determination of the critical load factor if the Structure Stability add-on is not available. For purely linear structural elements, it may already be sufficient to calculate the load combination according to the linear static analysis, and determine the critical load using the add-on. Using the graphical buckling mode of this load combination, you can possibly find the problematic location in the structure and fix the problem.
