Surface Result Points

How can I set user-defined points for result values on surfaces in RFEM 6?

Answer:

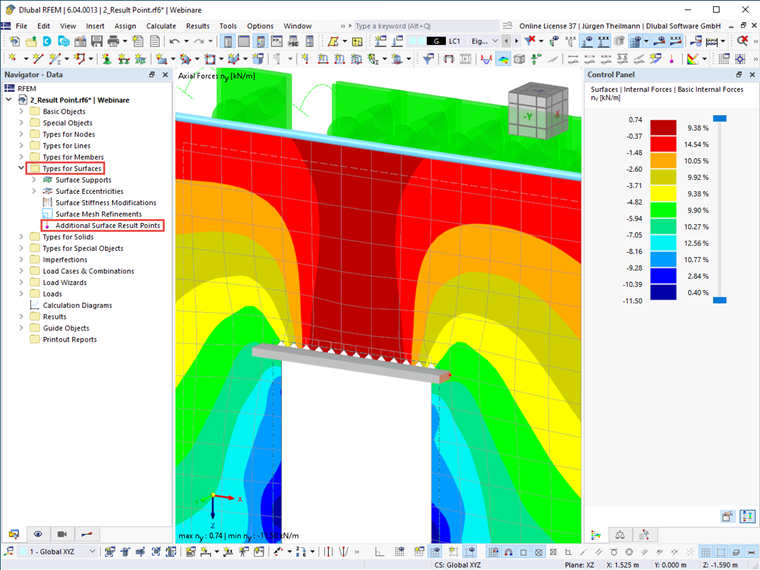

In order to be able to evaluate user-defined points in addition to the result values at grid points and FE mesh nodes, RFEM 6 allows you to set "Result Points". These can be found under the "Result Objects".

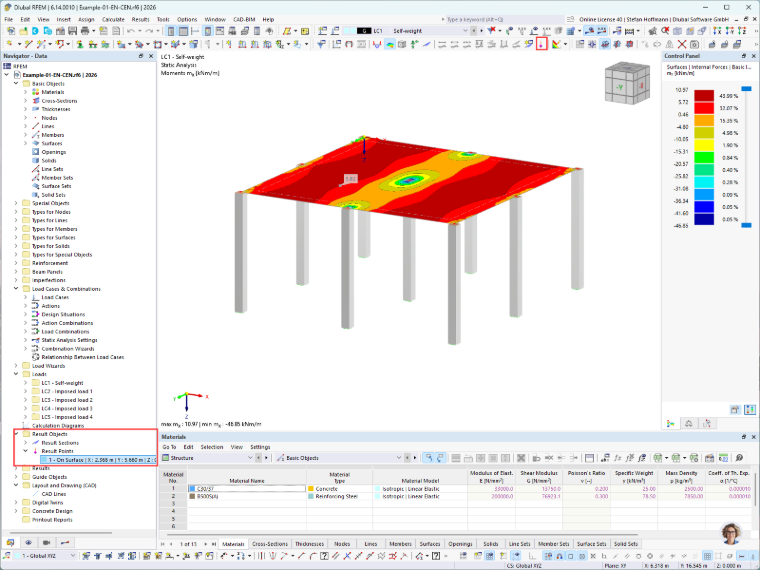

Inserting a Result Point
Entering Result Point

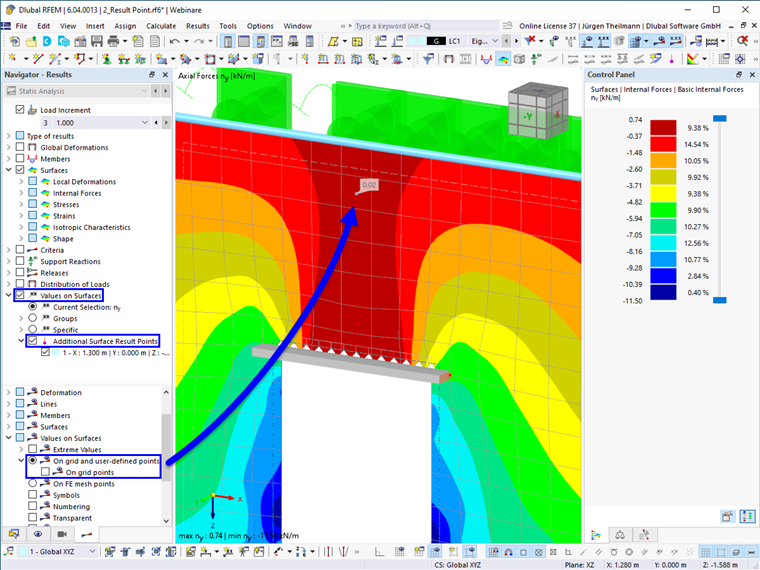

After the calculation, you can display the values in the user-defined result points using the corresponding options of the 'Navigator - Results'. When displaying the values in FE mesh points, the additional surface result points are disabled.

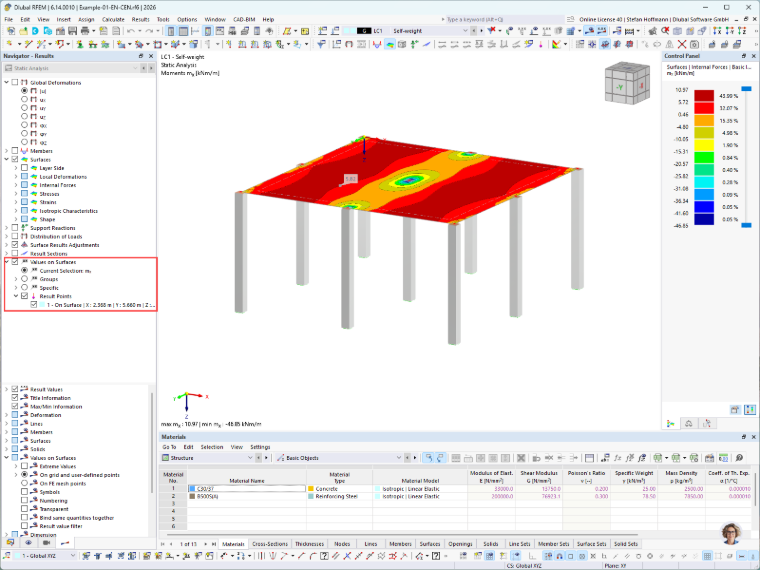

Display of the values from the result point
Display of Values from Result Point

Setting the result objects is not possible in the wireframe model, because only the dashed line of the surfaces can be detected as a location.

;
