Modeling Miter Joint in Steel Joints Add-on

The following steps can be carried out for this.

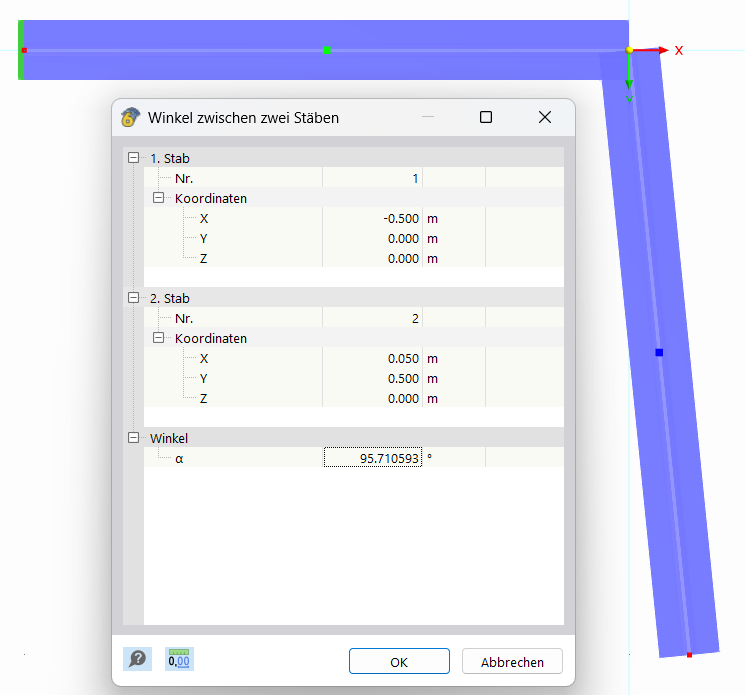

1. Accurately measure the angle between the beams


   Angle Measurement

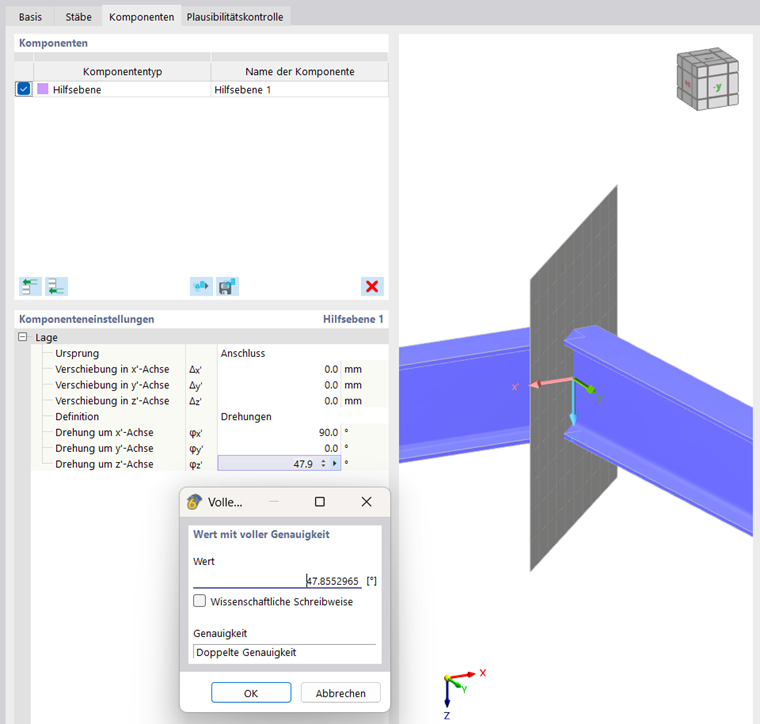

2. Create an auxiliary plane for the cut. The plane is rotated so that it halves the angle between the beams.


   Definition of Auxiliary Plane

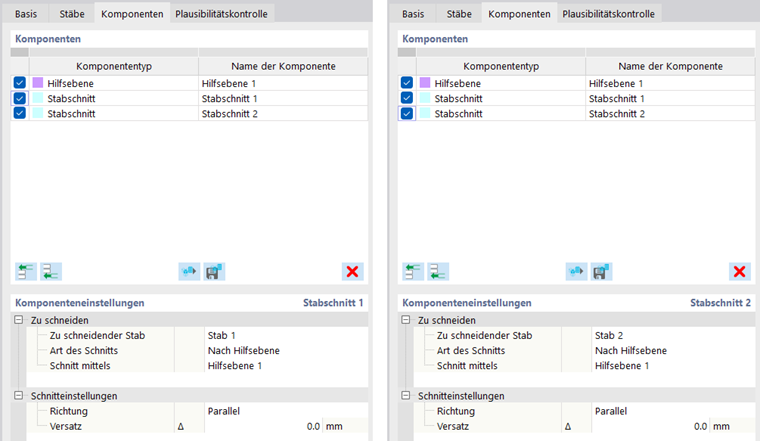

3. Cut the two beams on the auxiliary plane


   Cutting Members on Auxiliary Plane
4. Add a weld between the members, as well as Member 1 | Flange 2 and Member 2 | Flange 2. The butt weld is placed on the front side.


   Weld Between Webs and Lower Flanges

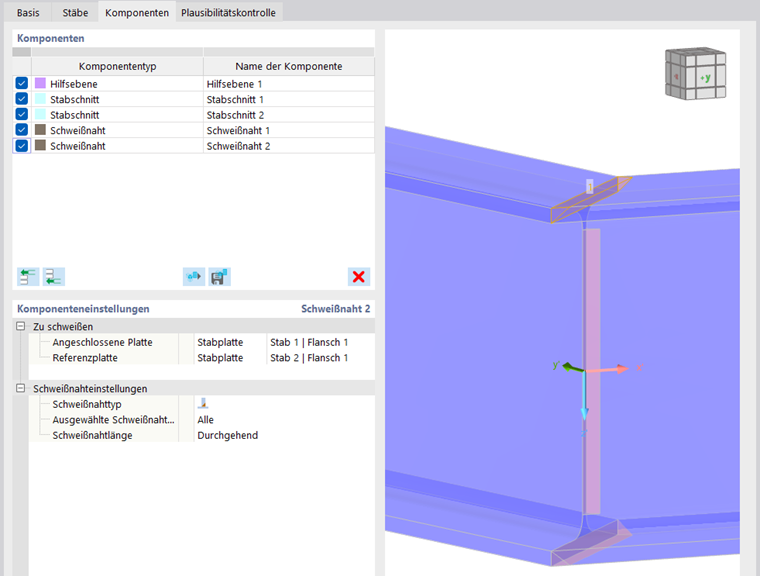

5. Add a weld between Member 1 | Flange 1 and Member 2 | Flange 1. The butt weld is arranged on the back here, as otherwise it would be split and would have to be welded from the inside.


   Weld Between Upper Flanges
