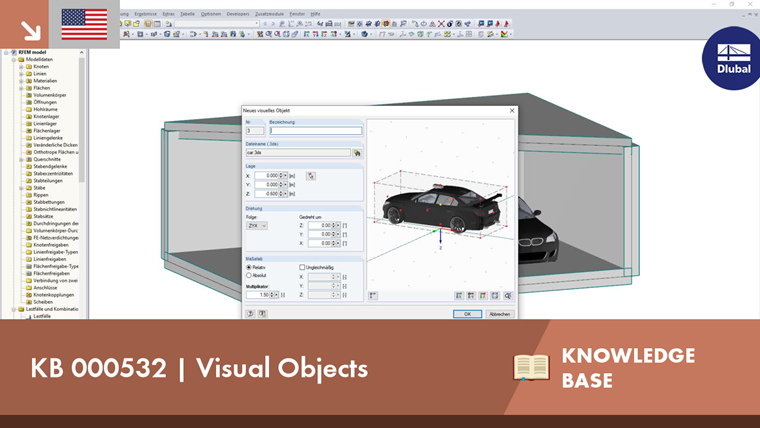

Inserting Visual Objects

Tips & Tricks

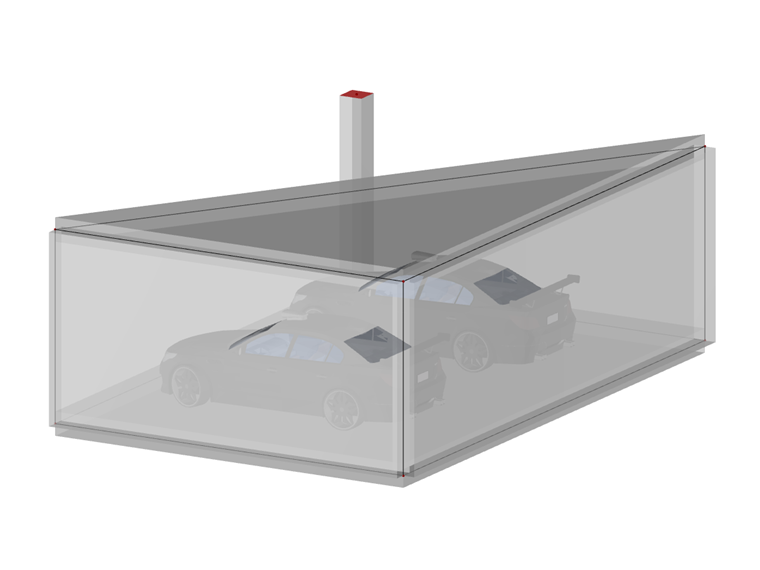

To make a convincing impression on your client when presenting the structural model, RFEM 5 and RSTAB 8 offer you the possibility to include visual objects in the model. These objects allow both laypersons and engineers to better understand the dimensions of the system.

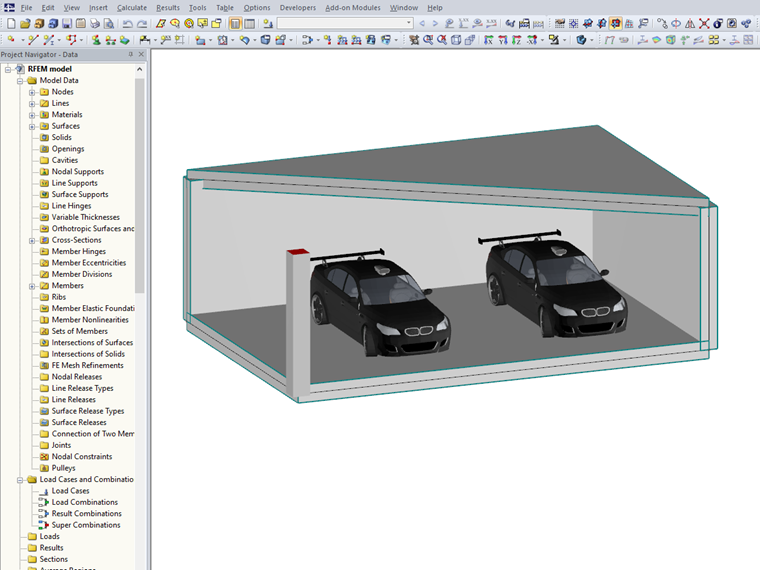

The inserted visual objects can be turned on or off in the ‘Display’ navigator. All *.3ds files can be used as visual objects.
