Displaying Distribution of Load 1

Tips & Tricks

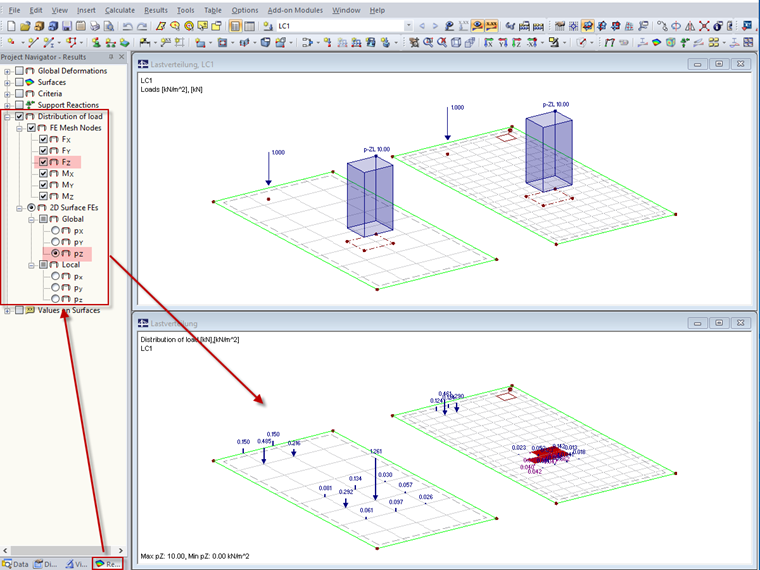

A new result type is available under Results in RFEM. ‘Distribution of load’ represents a load actually applied to the system of FE mesh points or FE surfaces. Especially in case of line loads and free loads, the FE mesh size plays an important role in the loading.

For example, if you put a geometrically small free rectangle load to a surface with a coarse FE mesh, the load is distributed over a much larger surface.
