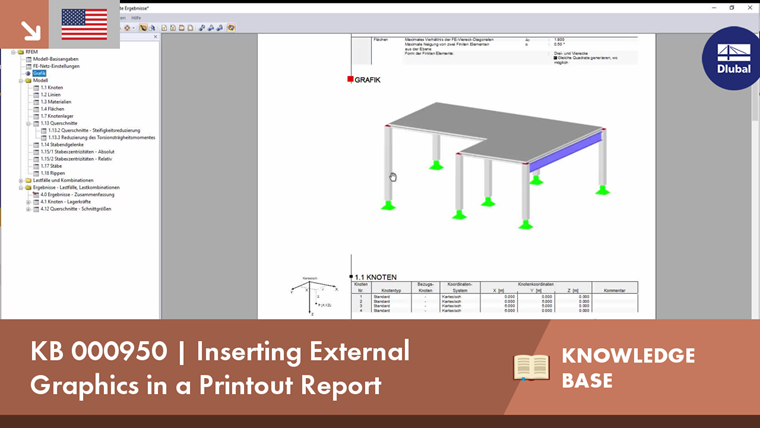

Inserting External Graphics in Printout Report
In RFEM and RSTAB, you can insert external images into the printout report.

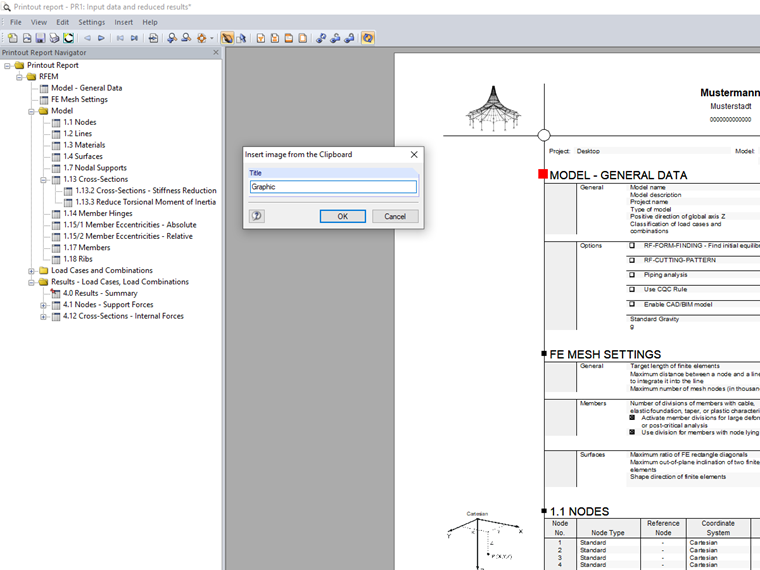

For this, you need to copy the image to the Clipboard using [Ctrl+C]. Click "Insert" → "Image from Clipboard" in the printout report menu to insert the image into the printout report.
This image appears as a separate section at the end of the printout report and you can move it to any position using the drag-and-drop function.
