Member and Line Loads: Preview in Dialog Box

Tips & Tricks

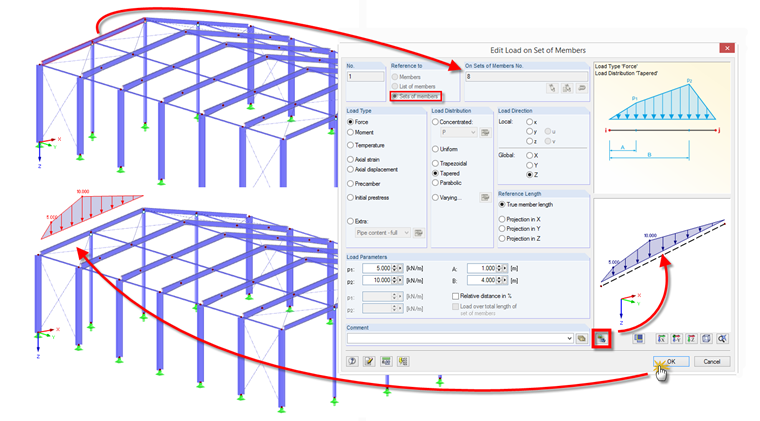

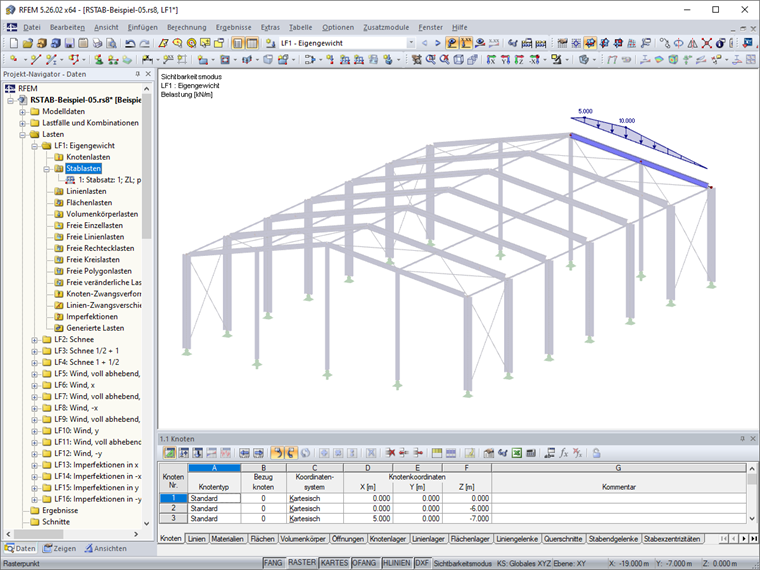

In RFEM and RSTAB, there is a new useful option which allows you to check member and line loads entries in the same dialog box. Important settings such as the load direction (local or global), chosen according to the load as well as the reference length, can be easily checked when entering the input data.

This feature provides better efficiency for entering complex loads, since it prevents subsequent editing of member or line load in the case of an incorrect definition.
