RF-/STEEL Plasticity | Design and Results
The cross-section resistance design considers all internal force combinations.
If cross-sections are designed according to the PIF method, the internal forces of the cross-section, which are acting in the system of the principal axes related to the centroid or the shear center, are transformed into a local system of coordinates that rests in the web center and is oriented in the web direction.
The individual internal forces are distributed on the top and bottom flange as well as on the web and the limit internal forces of the cross‑section parts are determined. Provided that the shear stresses and the flange moments can be absorbed, the axial load bearing capacity and the ultimate load capacity for bending of the cross‑section are determined by means of the remaining internal forces and compared with the existing force and moment. If the shear stress or the flange resistance is exceeded, the design cannot be performed.
The Simplex Method determines the plastic enlargement factor with the relevant internal force combination using the SHAPE‑THIN calculation. The reciprocal value of the enlargement factor represents the design ratio of the cross‑section.
Elliptical cross-sections are analyzed for their plastic load‑bearing capacity on the basis of an analytical nonlinear optimization procedure which is similar to the Simplex Method. Separate design cases allow for flexible analysis of selected members, sets of members, and actions as well as of individual cross‑sections.
You can adjust design-relevant parameters such as calculation of all cross‑sections according to the Simplex Method.

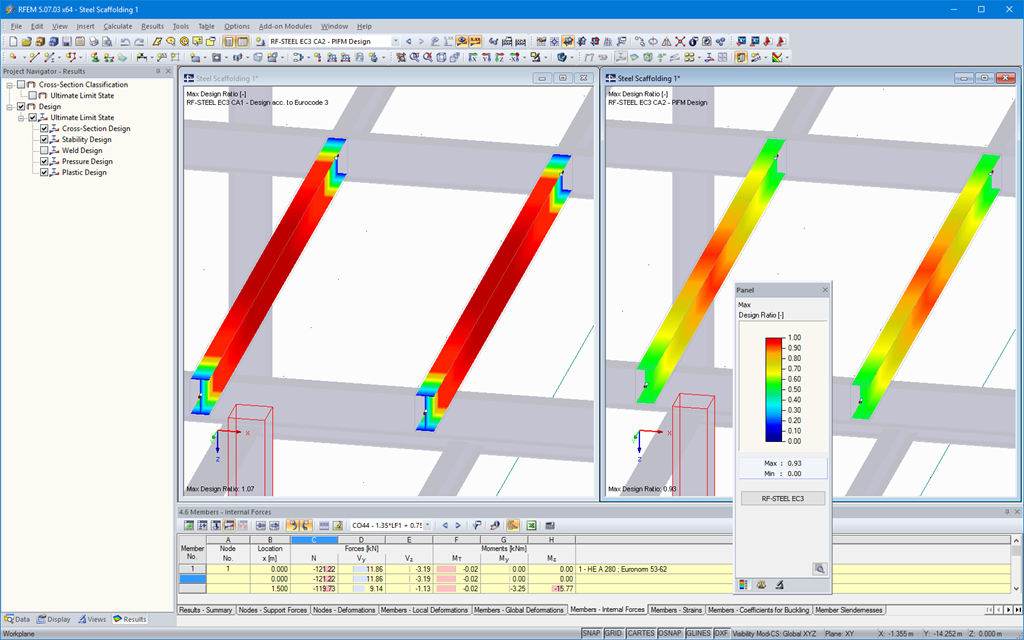

The results of the plastic design are displayed in RF‑/STEEL EC3 as usual. The respective result tables include internal forces, cross‑section classes, overall design, and other result data.
Module Extension for RF-STEEL EC3
Plastic design of cross-sections according the Partial Internal Forces Method (PIFM) and Simplex Method
