The calculation is performed successively for each load step. Permanent (plastic) deformations of previous load steps are considered when calculating further load steps. This way, it is also possible to perform a calculation with a structure relief.

The loads of the individual steps are added up (depending on the signs) throughout the calculation process. You can freely select the method of analysis (linear static, second-order, large deformation, and postcritical analysis). Furthermore, the module manages the global calculation settings.

After defining the entire model and loading in RFEM, it is possible to enter load steps and descriptions in the 1.1 General Data window.

In Window 1.2 Loads, you can assign the load cases or load combinations to the different load increments. It is possible to multiply them by a load factor.

• Simple definition of load increments
• Simple assignment of load cases and load combinations to load increments
• Consideration of plastic deformations (isotropic hardening behavior) of previous load increments

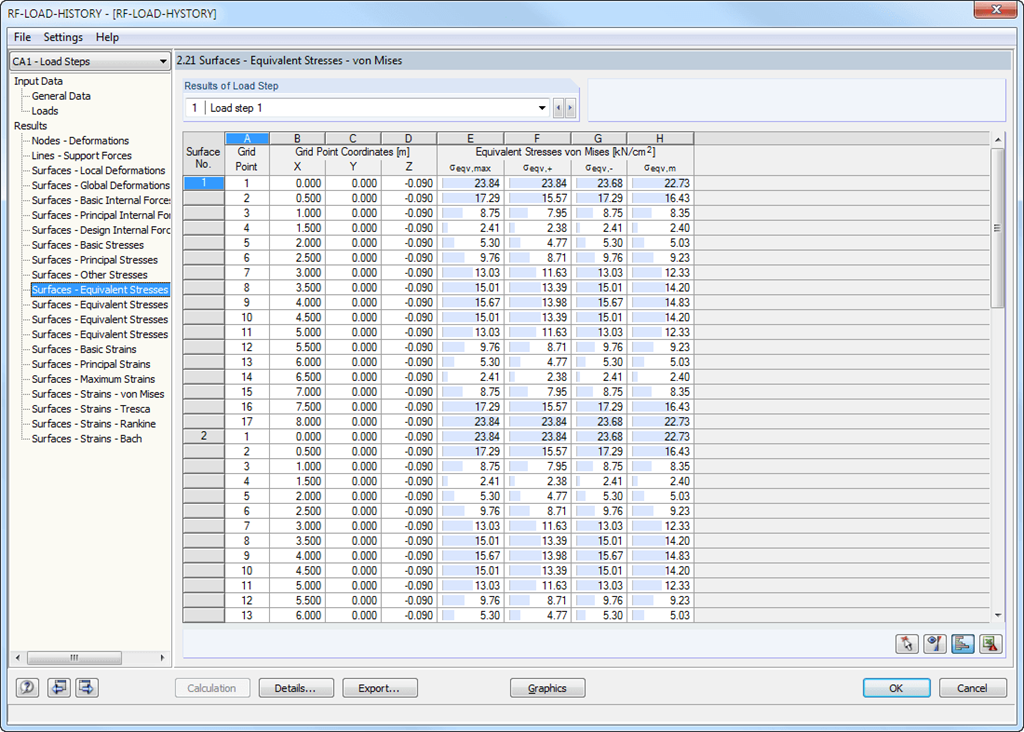

• Numerical and graphical display of results (deformations, support forces, internal forces, stresses, strains, and so on) for individual load increments
• Detailed printout report including result documentation for all load increments
