Extended Display of Strains in RFEM

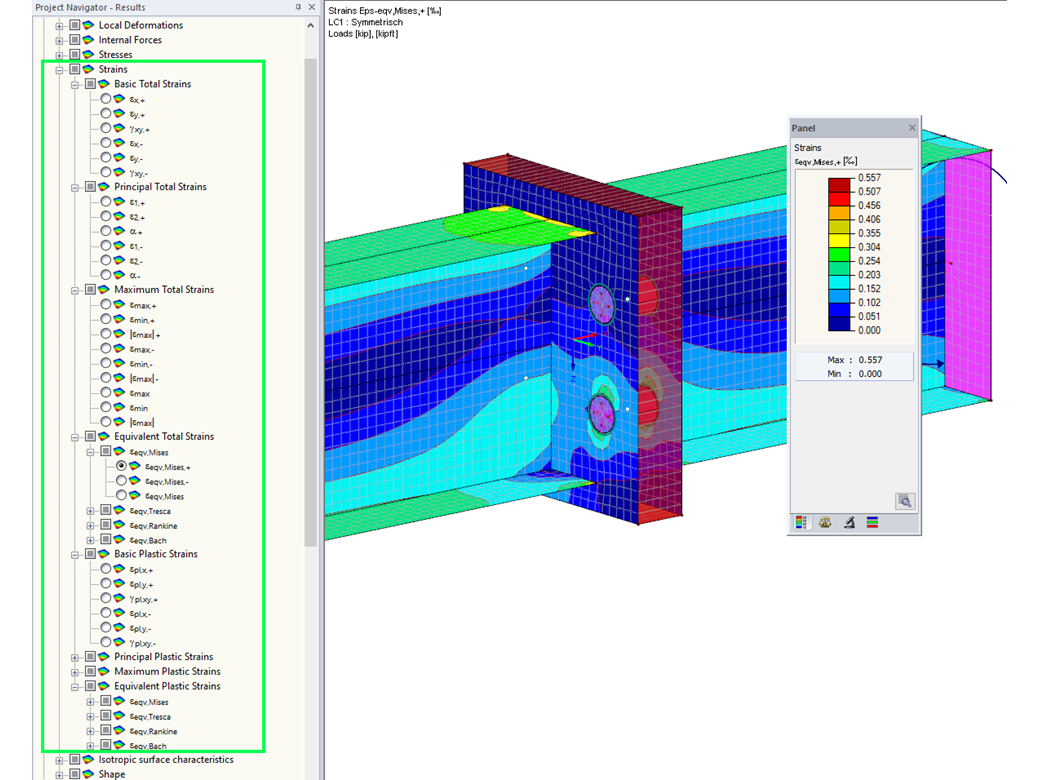

Display extended strains of members, surfaces and solids (e.g. important principal strains, equivalent total strains, etc.) in the Project Navigator - Results in RFEM as well as in Table 4.0.
For example, you can display governing plastic strains when performing the plastic design of connections with surface elements.
