Considering Crack Factor kcr for Surfaces
Product Feature

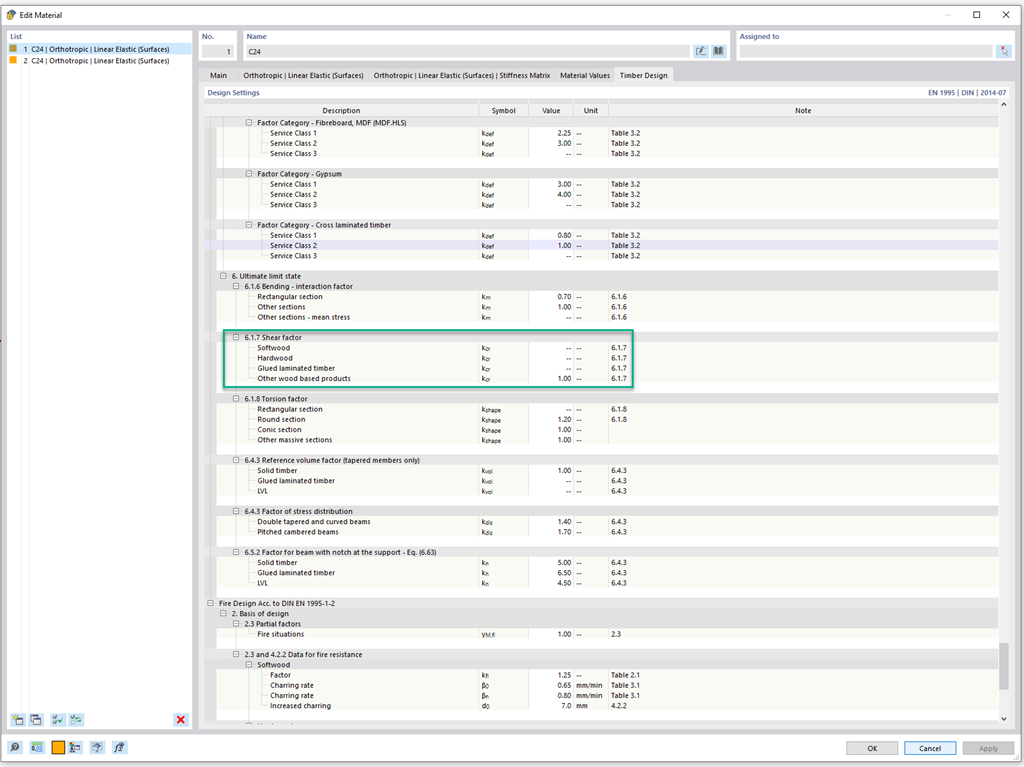

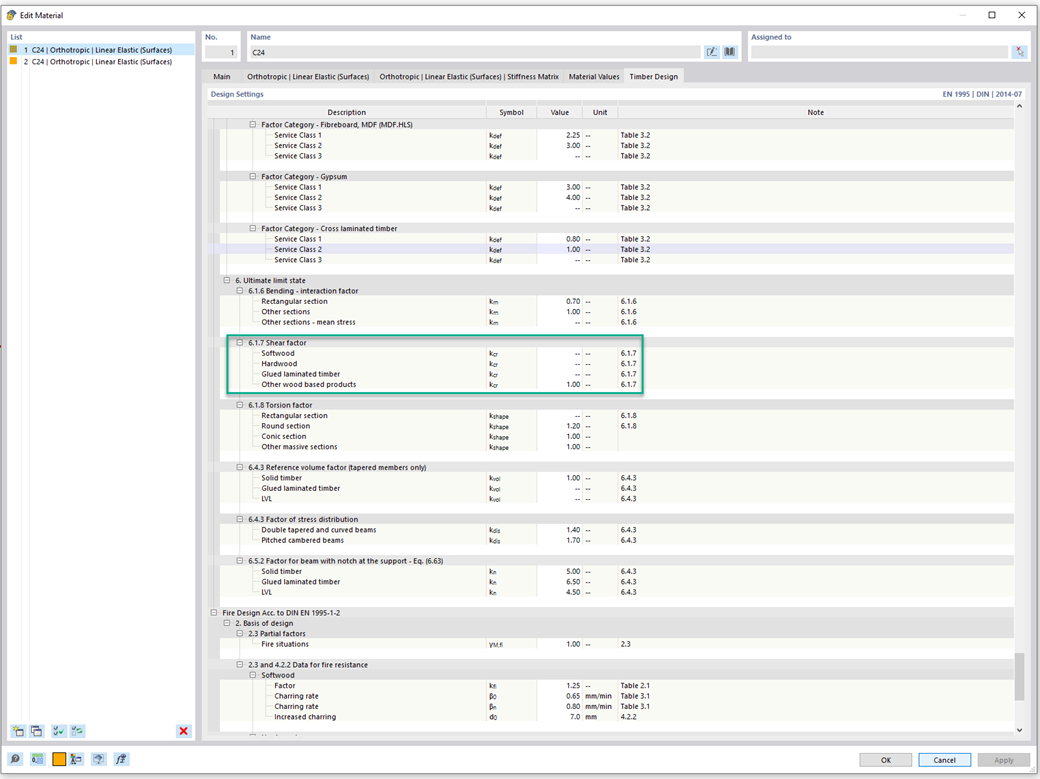

Do you work with timber? We have a new feature for you! For timber surfaces with the "Constant" thickness type, the crack factor kcr and thus the negative influence of cracks on the shear capacity is taken into account.
Keywords
Timber Surfaces Crack Crack Factor kcr Shear Shear Capacity
