The calculation results of the Structure Stability add-on allow for the evaluation of fundamental properties of a structural system:
- Critical loads and associated deformations
- Displacements and rotations of nodes, surfaces, members, and lines
- Effective lengths and buckling coefficients of members
Results Output
After the calculation, the results are displayed transparently, that is, together with the results of the main program and other add-ons. You can access the results:

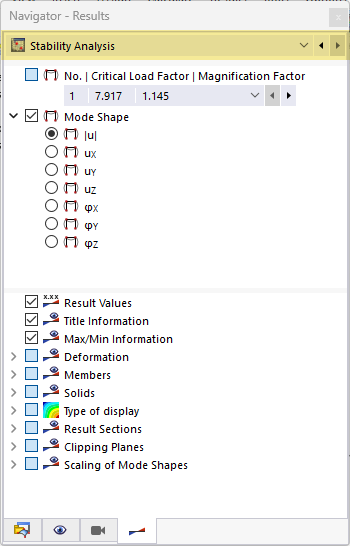

- In the Results Navigator: Category “Stability Analysis” or “Nonlinear Stability Analysis”
- In the tables (equivalent category)

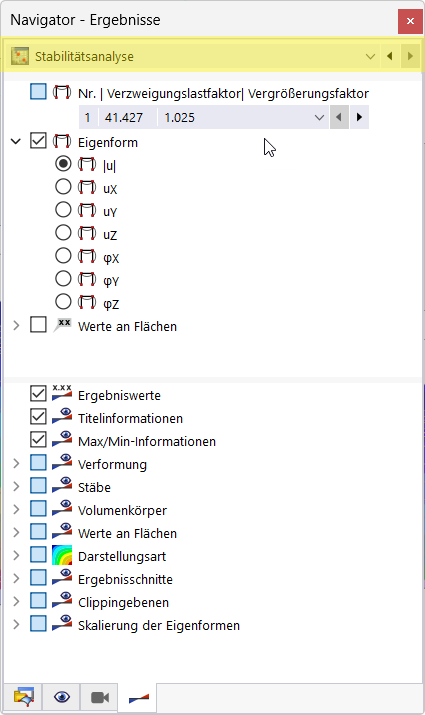

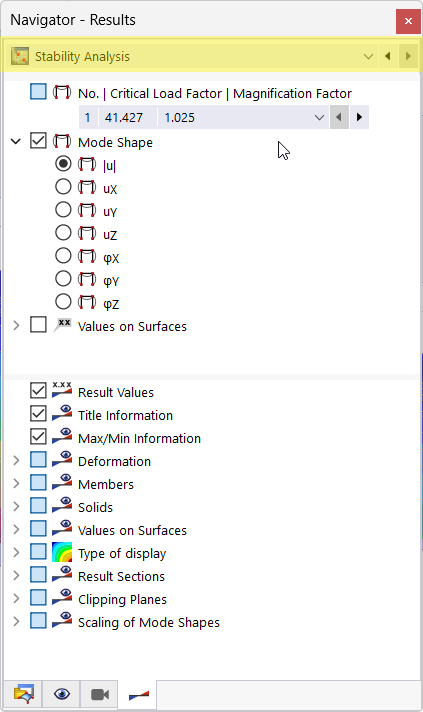

Image gallery of the result output:
Output Control
There are numerous options for customizing the output of results; you can use the “Result Table Manager” and the “Result Value Filter” for this purpose. The corresponding program dialog boxes can be found in the menu bar → Results.

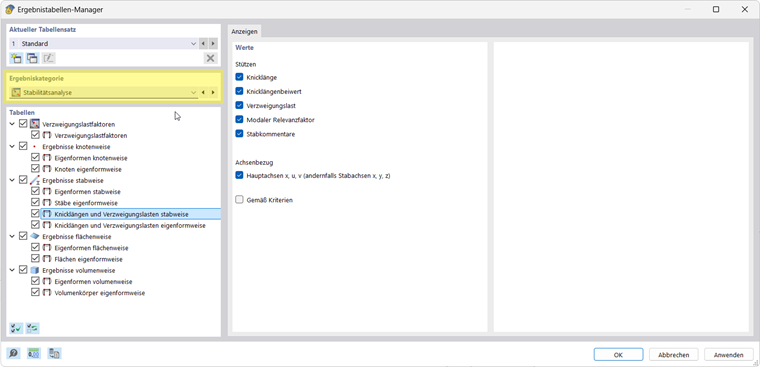

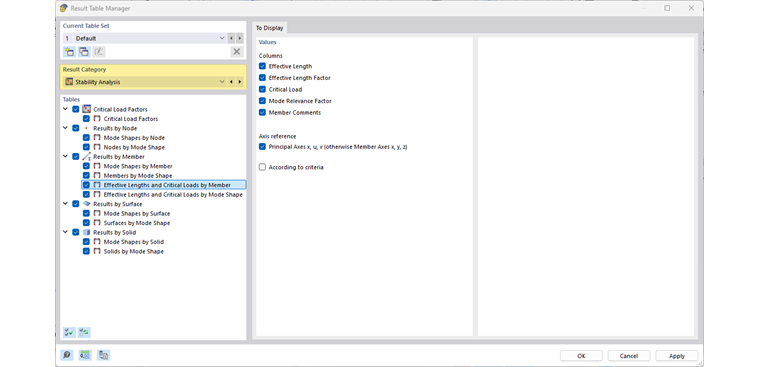

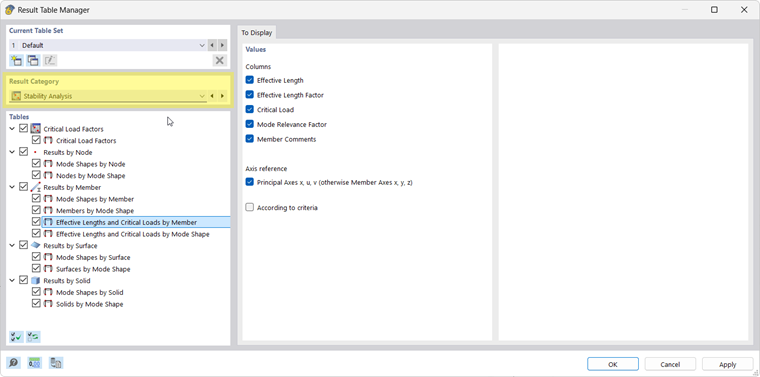

Image gallery of customizing result output:
For more information on the control of result output, refer to the RFEM manual.
