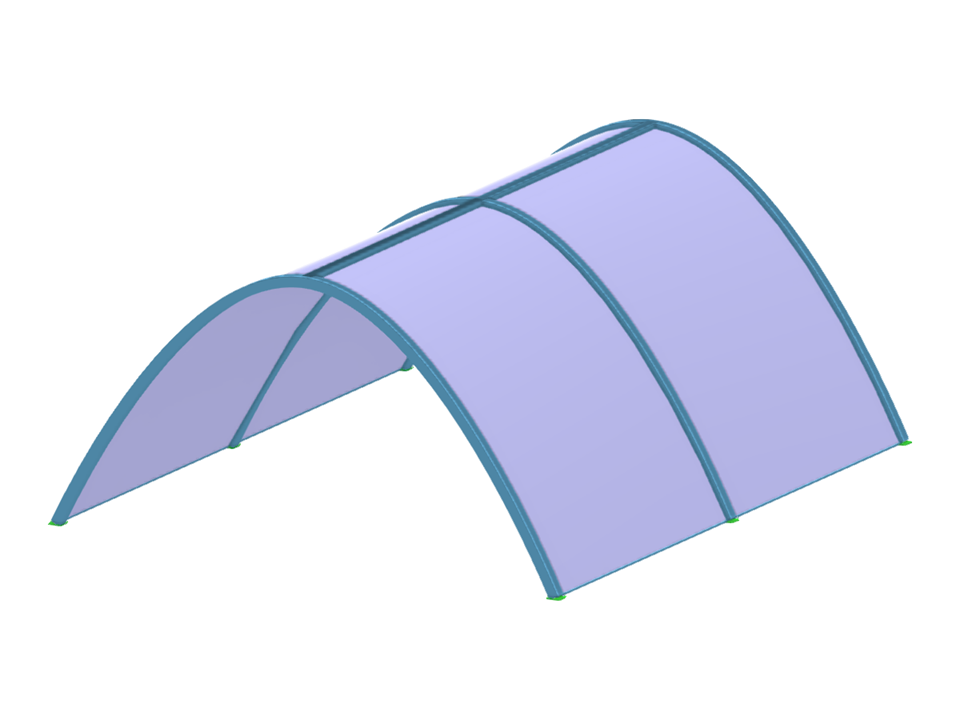

Membrane Structures from Online Training | RFEM 6 Tutorial with Rhino & Grasshopper
Model to Download
Description
Download the model of a membrane structures here and open it with the finite element program RFEM. This model was created for the online training "RFEM 6 Tutorial with Rhino & Grasshopper."
Model Used in
Keywords
Write Comment...
Write Comment...
- Views 300x
- Downloads 15x
- Updated 7 March 2022
- Number of Nodes 9
- Number of Lines 13
- Number of Members 9
- Number of Surfaces 2
- Number of Solids 0
- Number of Load Cases 0
- Number of Load Combinations 0
- Number of Result Combinations 0
- Total Weight 1,675 t
- Dimensions 10,000 x 7,892 x 12,000 m
