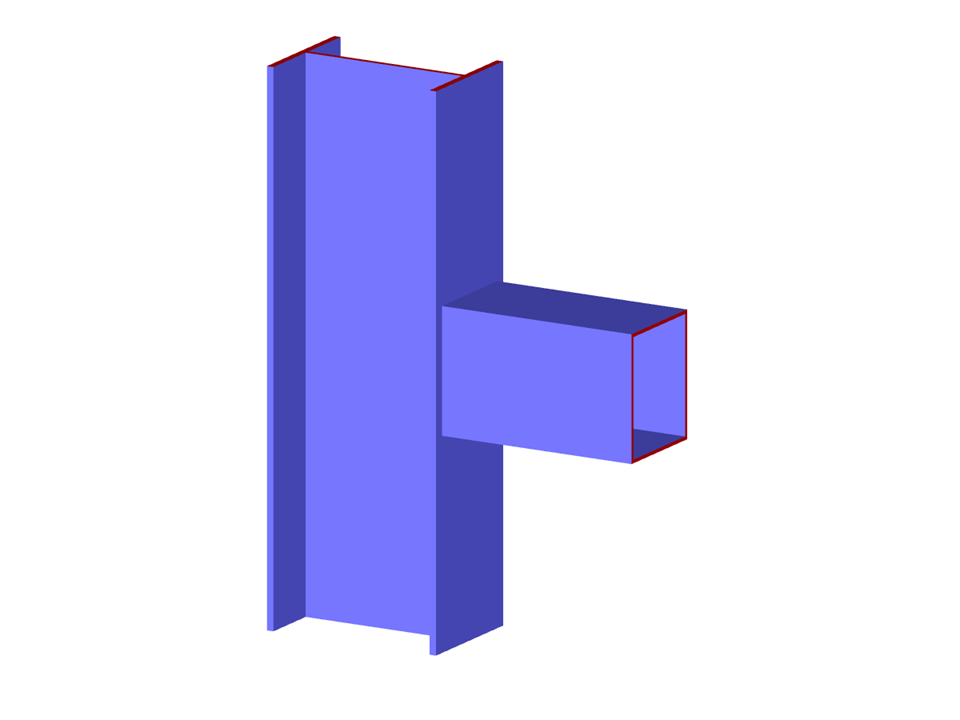

Parameterization of the geometry of a rectangular section steel beam connected to an I-section steel column. Connection by means of bracket and stiffening plates.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Beam and Column Joint
| Block parameters editable dynamically | |
| Number of Nodes | 43 |
| Number of Lines | 75 |
| Number of Members | 2 |
| Number of Surfaces | 24 |
| Total Weight | 1.502 tons |
| Dimensions | 4.65 x 1.51 x 6.56 feet |
| Program Version | 5.28.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
