North Surrey Sports & Ice Complex, Canada

Structures Analysed with Dlubal Software

  • Customer project

Customer Project

With an area of 110,000 ft², the North Surrey Sports and Ice Complex includes three ice rinks, event rooms, and restaurants, as well as outdoor areas.StructureCraft, a customer of Dlubal Software, was selected as the structural engineer and builder of the roof structure for this exciting local project in Surrey, Canada, after proposing a turnkey, value-engineered solution in late 2017.

Client
City of Surrey, Canada
Architect Francl Architecture, Canada
franclarchitecture.com
General Contractor
Lark Group, Canada
Base Building Engineer
Bogdonov Pao
Roof Structural Engineer and Builder
StructureCraft Builders Inc., Canada

Model data of a hybrid roof truss

Model

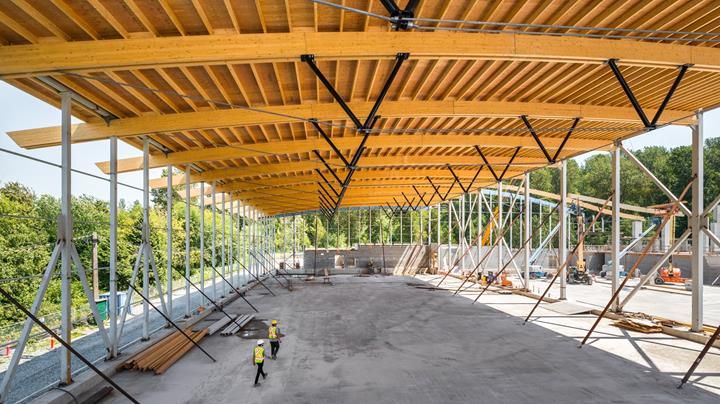

StructureCraft worked alongside Francl Architecture, Bogdonov Pao, and Lark Group to engineer and build the hybrid timber/steel roof structure for the three rinks in North Surrey.

StructureCraft completed the design and procurement of the roof structure. Installation of the roof structure took 10 weeks, beginning in June 2018 and finishing in September 2018.

Structure

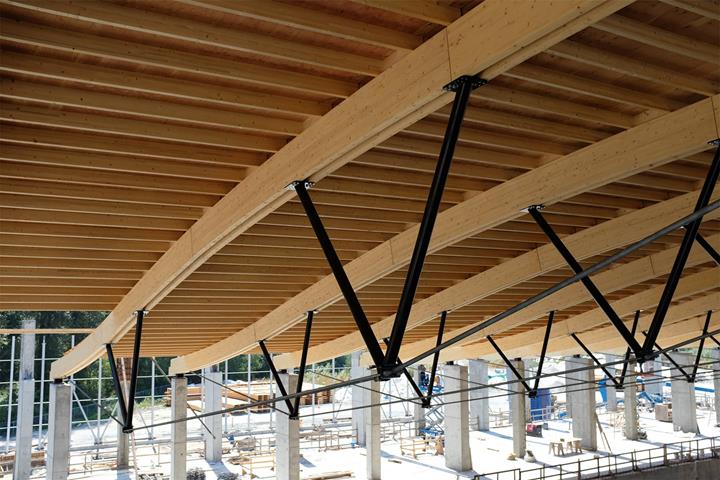

The long-span hybrid timber/steel trusses consist of a double glulam top chord, steel rod tension chord, and HSS king posts. There are 11 trusses per rink and the secondary frame consists of double-span prefabricated timber panels.

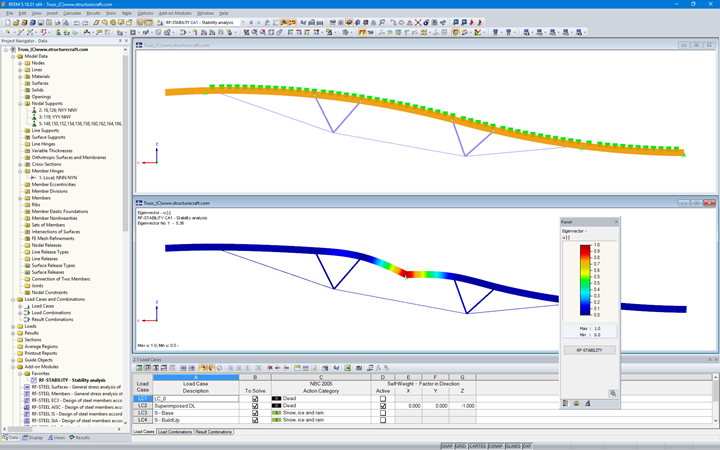

The StructureCraft engineers used RFEM for the analysis of each truss system, determining the main member stresses as well as performing a stability analysis using RF-Stability.

The complex is scheduled to open in September 2019.
