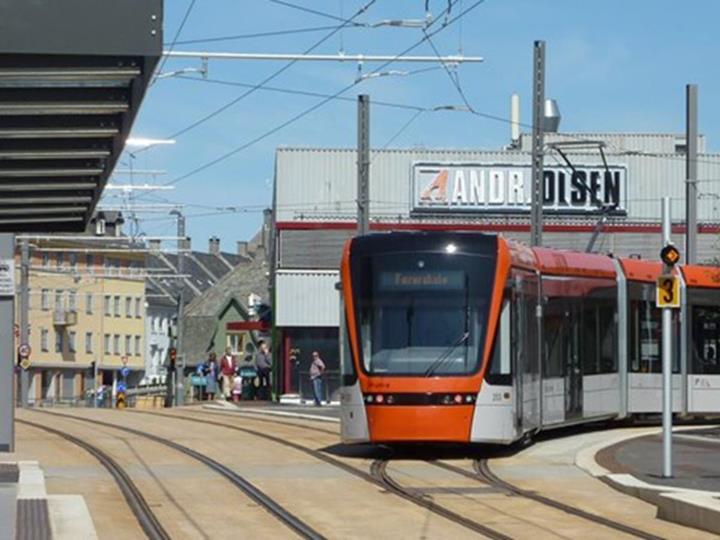

Catenary Model Designs for Streetcars in Norway
Customer Project

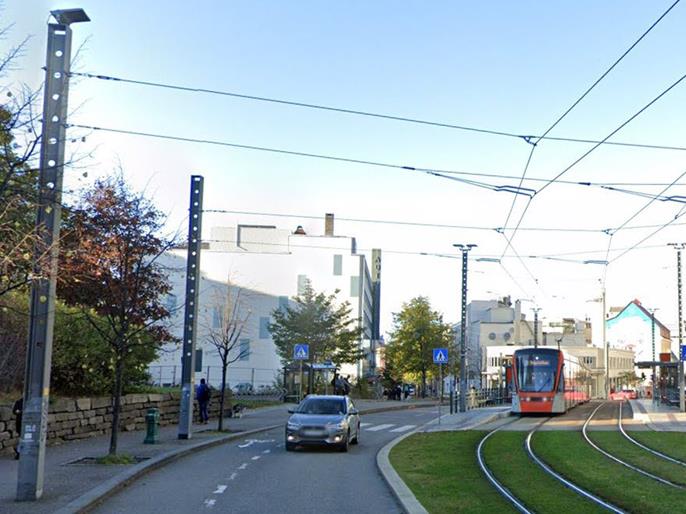

The Infrastructure department of SDEA Engineering Solutions has extensive experience in the railroad sector, especially in designing electrification using overhead contact lines (OCS/OLE), where it has developed projects for high-speed trains in England and streetcar lines in Norway.
| Structural Design |
SDEA Engineering Solutions - Spain Mob.: +34 653 942 425 www.sdeasolutions.com |
Model

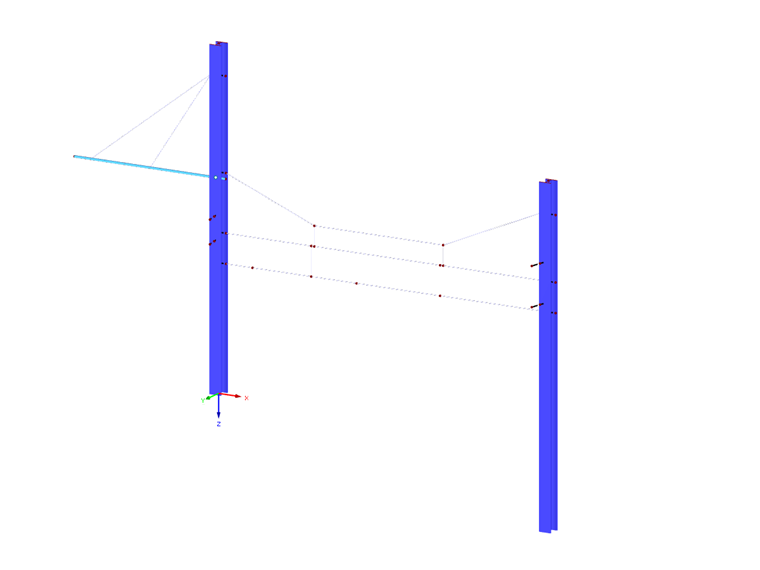

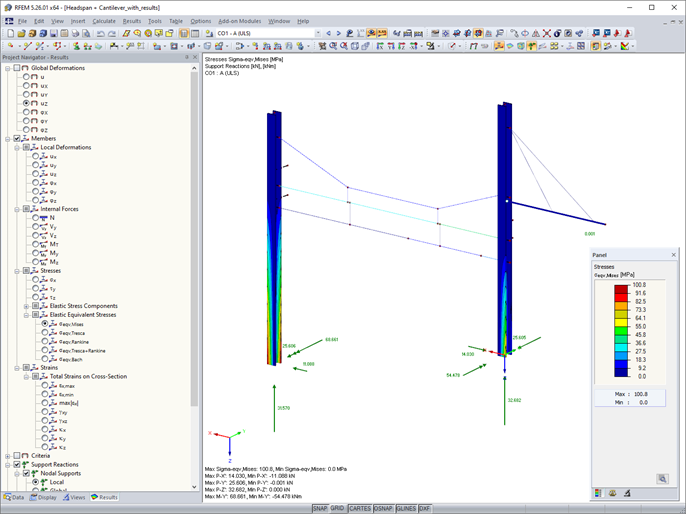

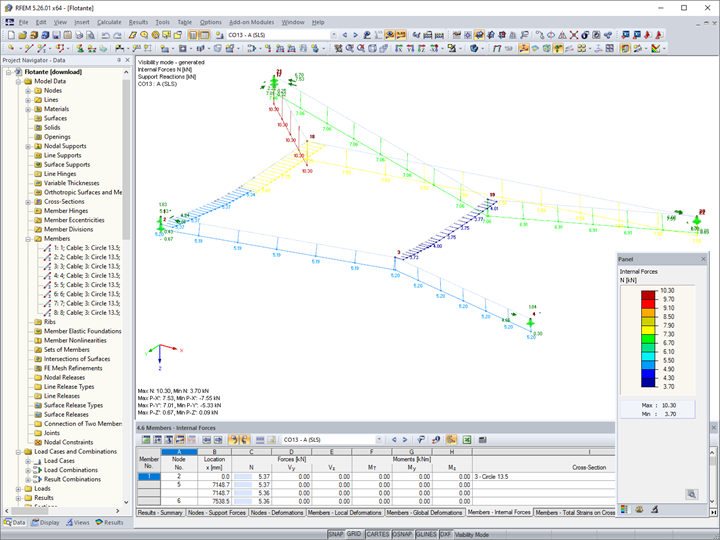

In projects for streetcars, the overhead catenary designs lead to elements with highly non-linear behavior, with large deformations that require correct structural analysis so as not to put the line out of service.
After an exhaustive comparison of the software packages on the market, SDEA Engineering Solutions found the answer it needed in Dlubal’s RFEM software. This program has a very good learning curve (as easy to handle as an Excel sheet), a large number of tutorials, and extensive ad hoc documentation. In addition, its team of technicians deserves special mention, as they worked hard to solve all the questions that arose during the initial phases of the project.
From a technical point of view, the option of creating fully parameterized models was essential, from the geometry, to the loads, to the final result output. Another fundamental point was the software's intuitive and agile menu for defining action combinations and the fact that many of them were predefined, based on the most relevant standards of a wide variety of countries.
Project Location
Stavanger, NorwayKeywords
Catenary model Steel structure Railroad design Cable
