FAQ 004400 | When creating an FE mesh for a solid, I get Error No. 2306: "Surface boundary is not closed at edges XX."<div>My solid has openings in the boundary surfaces. How can I solve the problem?</div>

Video

First Steps with RFEM

First steps

We provide hints and tips to help you get started with the RFEM program.

9 April 2020

001329

René Flori

Please accept Marketing Cookies to watch this video.

Question

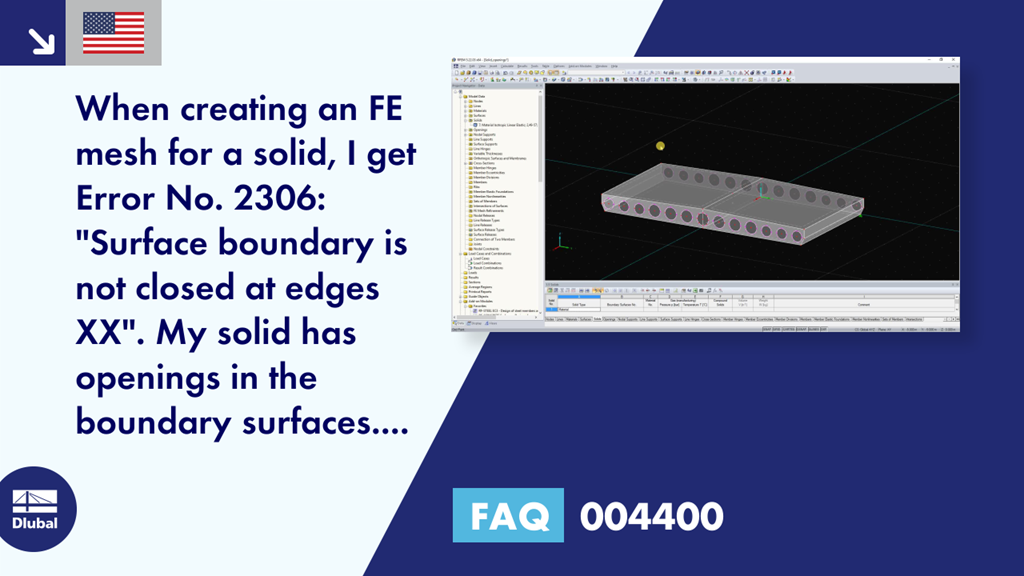

When creating an FE mesh for a solid, I get Error No. 2306: "Surface boundary is not closed at edges XX."
My solid has openings in the boundary surfaces. How can I solve the problem?

Answer

A solid must always be completely closed. To clarify the problem, imagine filling the solid with a liquid. The liquid must not escape from the solid at any point.

The attached video shows how to easily and effeciently insert the missing surfaces.

Keywords

Dlubal FAQ Not closed 2306 Border line Solid Frequently Asked Question FAQ about Dlubal Question and Answer about Dlubal
