FAQ 000258 | I have a model with surfaces and members. If I display the deformations in the graph...

Video 01 - FAQ Explanatory Video

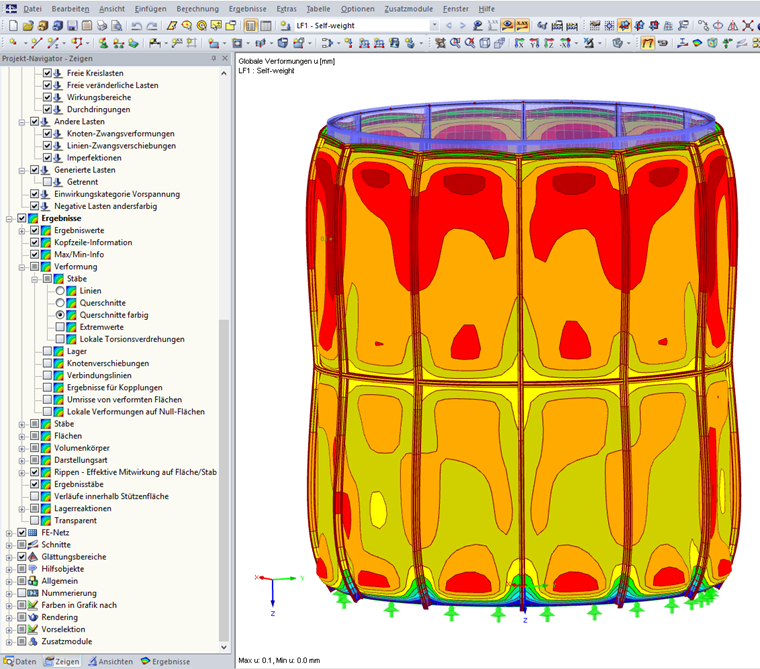

Deformed members with cross-sections

Figure 01 - Deformed members with cross-sections

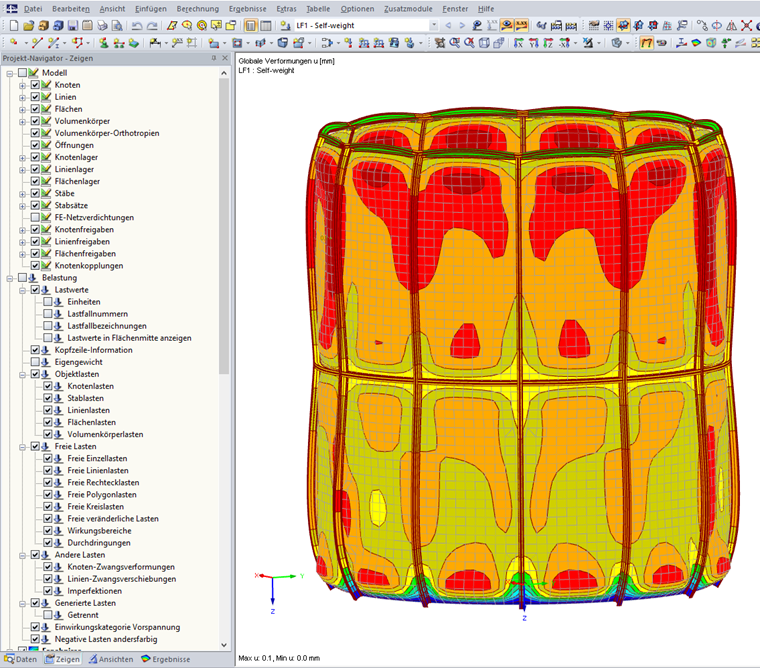

Undeformed structure hidden

Figure 02 - Undeformed structure hidden

This article was translated by Google Translator

View original text

1 December 2017

000258

Markus Baumgärtel

Display Settings

RFEM

I have a model with surfaces and members. If I display the deformations in the graphic, the members remain in their initial position.

The members are connected with the surfaces and the table also shows the member deformations. What is the reason for this behavior?

Answer

To avoid an overly convoluted display, the member deformations are shown as lines by default.

In the "Display" navigator, you can adjust the display so that the member deformations are also shown as rendered cross-sections.

Furthermore, you can hide the undeformed model in the "Display" navigator to view only the deformations.

Keywords

Deformation Member deformation Rendering Rendered
