Display Settings RFEM RSTAB

Only the extreme value of the entire system is represented in the graphic of the deformation.

Is it possible to display also the maximum deformation of each member?

Answer

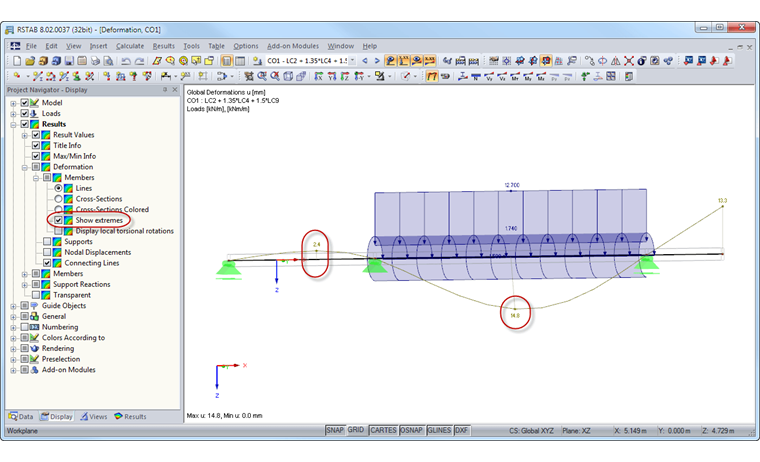

Yes, you can display the maximum deformation of each member. Go to the "Display" navigator, open the items "Results", "Deformation" and "Members", and activate the option "Show extremes".

Please note:

If you have changed several default settings and want to reuse them, you can define the complete "Display" navigator settings as the default setting. Just right-click into the free space of the navigator and select "Save Settings as Default" in the context menu.
