My custom colors z. B. for the cross sections are not taken over in the printout report.

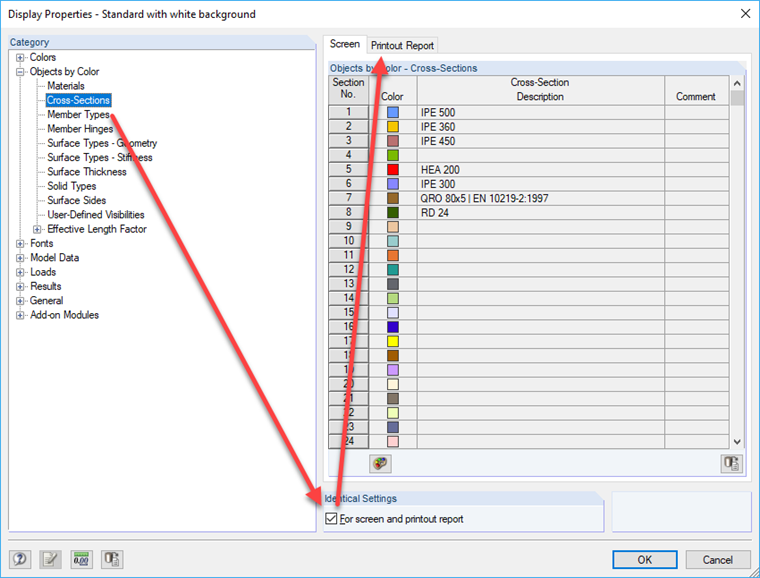

For the colors in the screen view and in the printout report to be identical, you first have to switch to the display properties of the program.
The corresponding settings for the screen and for printing can then be defined in the respective category. If both views are to be displayed identically, the checkbox "For screen and printout report" must first be activated. All entries that are subsequently made to the settings are then identical for the screen view and the printout report.


Cross Section Colors Graphic Colors Material Colors Color Objects For Screen and Printout
