No, you don't need to worry. If the value of α*crit (the critical buckling value without torsional stiffness) is displayed in red and thus amounts to "0", there is no reduction of the imperfection factor (European lateral-torsional buckling line). The basic value for the imperfection factor is used.
Meaning of Red Display of Critical Factor α*crit in General Method

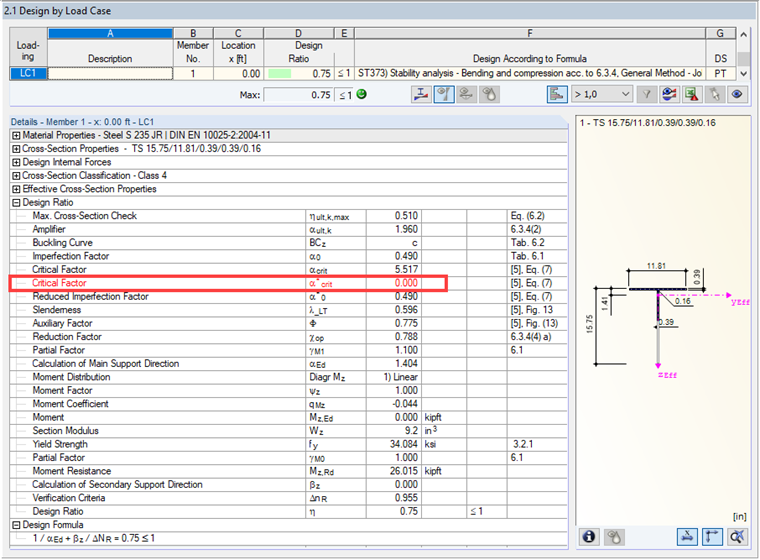

I am performing an analysis according to General Method 6.3.4 EN 1993‑1‑1 and have activated the addition "Adapted Method According to Naumes". The critical factor α*crit is displayed in red. Should I be worried?
