Markus Baumgärtel Add-on Modules RF-SOILIN Structural Analysis & Design Eurocode 7

When calculating with RF-SOILIN, I receive the error number 10739 with the message "The structure is above the terrain". What should I do?

Answer

The reason for the error message is the different heights of the floor slabs.

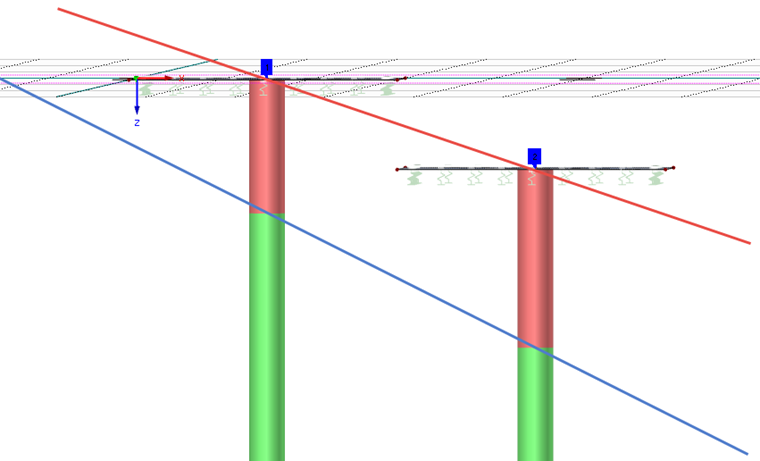

Figure 1 shows that the program has several levels of soil layer
generated to the soil layer between the individual soil samples. Due to the different
Heights of the floor slabs would theoretically cause some surfaces to hang in the air (thus the error message is displayed).

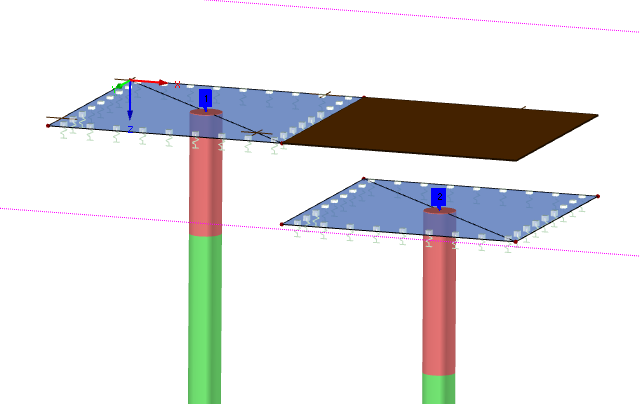

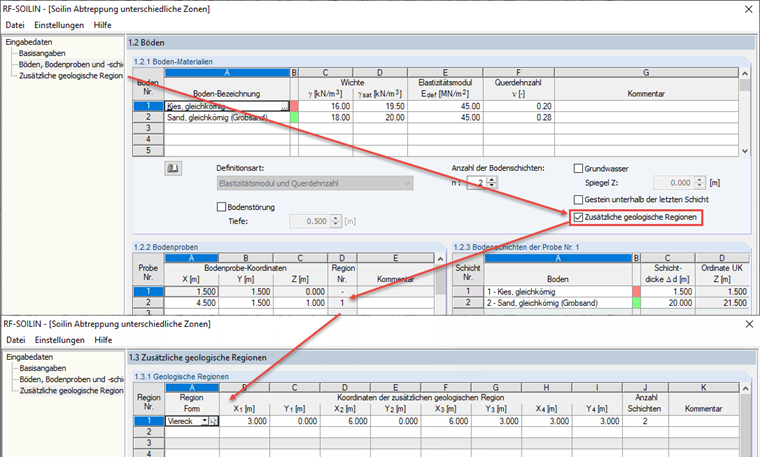

There is a function in RF-SOILIN that can describe additional geological regions (see Figure 2 and Figure 3).

Keywords

Terrain Foundation Settlement Error 10739
