There are two different add-on modules for a response spectrum analysis in RF‑/DYNAM Pro. What can be the reasons for the different results of both add-on modules?

Answer

The differences between the two modules are explained in this FAQ.

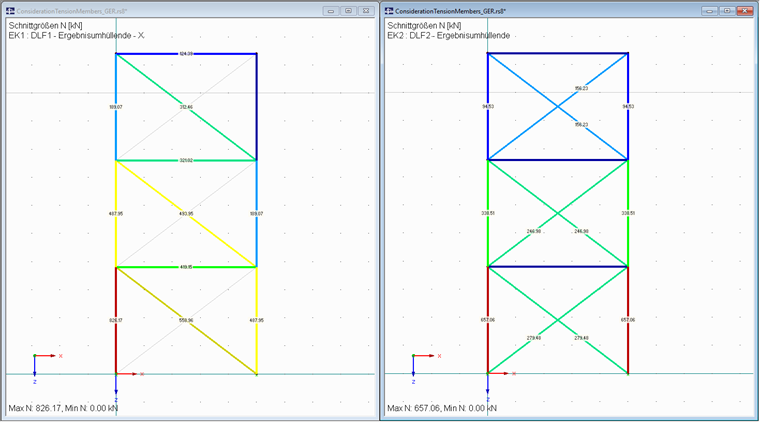

In the case of the same settings, there should also be the same results calculated in both add-on modules. However, this does not apply to the existing nonlinearities. The reason is that there are no nonlinearities considered in the RF‑/DYNAM Pro add-on module. If displaying the results in the Forced Vibrations add-on module, all nonlinearities are thus ignored. In contrast, the equivalent loads are calculated on a linear structural system, but the exported load cases are then calculated on a real structure in RFEM and RSTAB, that is, with all nonlinearities. This may lead to inconsistent results.

If you deactivate the nonlinearities for the exported load cases, you should obtain the same results.

The way of considering nonlinearities in the response spectrum analysis is described on the basis of tension members in this FAQ.

Keywords

Response spectrum Dynamic analysis Difference Result Nonlinearity Equivalent load
