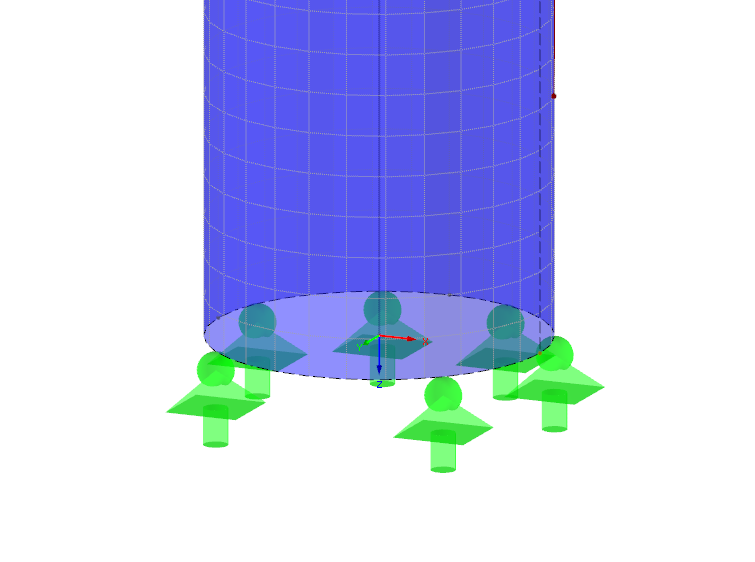

After generating a surface from a pipe member, this is no longer connected to the original nodal support. A line support is recommended for the newly created lines at the pipe start; see Image 01.

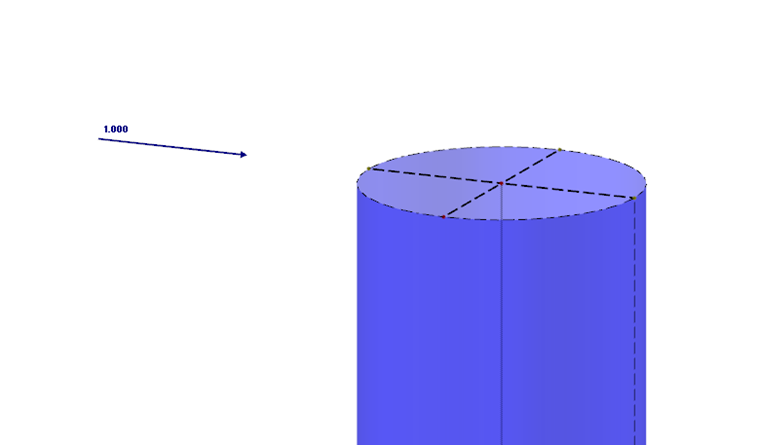

Also, the nodal load is no longer connected to the original member. In this case, a crossing of rigid members is recommended for the load introduction; see Image 02. Thus, the load is transferred to the boundary lines of the surface.
The results of solid stresses can be displayed as colored 3D points in the finite elements.
Use the "Independent mesh preferred" option in the FE mesh settings to create an independent FE mesh for the integrated objects. This allows you to generate a significantly more detailed and precise FE mesh for individual objects that are integrated into one another.
In the "Edit Section" dialog box, you can display the buckling shapes of the Finite Strip Method (FSM) as a 3D graphic.
In RFEM 6 and RSTAB 9, you have the option to enter "Visual Objects" as guide objects. You can import the file formats 3ds, stl, and obj.
These objects allow you to create a better reference to the dimensions.
