How is the rotational stiffness of a buckling stiffener determined in PLATE‑BUCKLING?

Answer

In PLATE‑BUCKLING, the rotational stiffness of a stiffener is determined on the basis of the sketch shown in the figure including formulas according to ECCS Design of Plated Structures, Fig. 2.77.

Rotational Stiffness of Stiffener with Same Distances to Next Stiffener

cθ=E·t33·b

Rotational stiffness of the buckling stiffness
E Modulus of elasticity
t Component thickness in the buckling panel
b Distance to the next stiffener

Rotational Stiffness of Stiffener with Different Distances to Next Stiffener

cθ=E·t3·b1+b24·b1·b2

cθ Rotational stiffness of the buckling stiffness
E Modulus of elasticity
t Component thickness in the buckling panel
b1 Distance to the next stiffener on one side
b2 Distance to the next stiffener to the other side

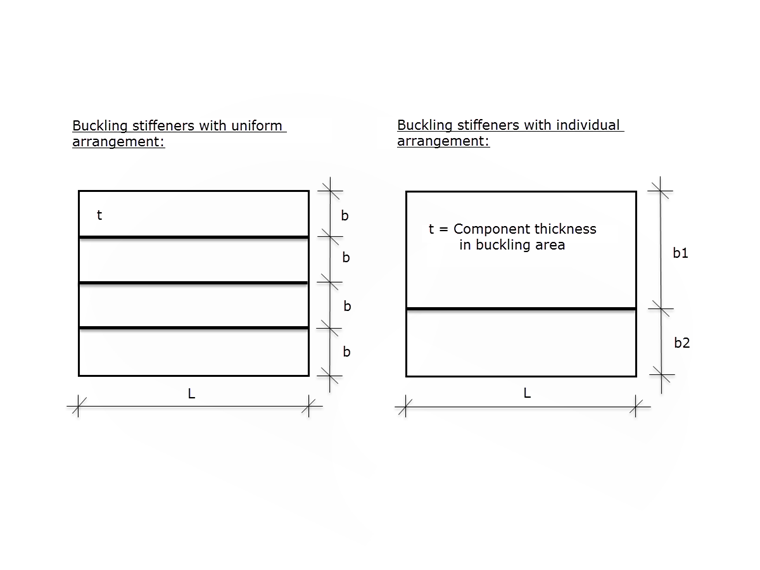

Image 01 - Sketch of Buckling Panels According to ECCS Design of Plated Structures, Fig 2.77

Keywords

Rotational stiffness Stiffener Transverse stiffener Longitudinal stiffener Torsional buckling
