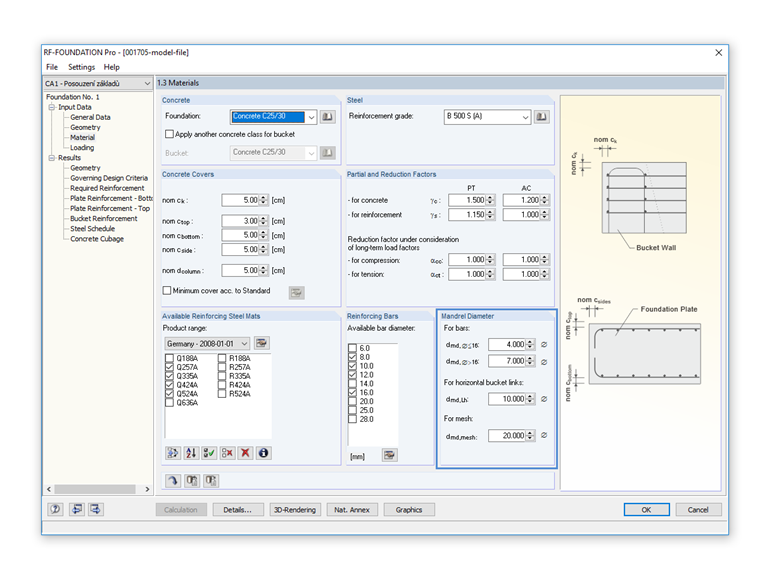

It is possible to specify the bending roll diameters used for the reinforcement proposal individually for the rebars, reinforcement mesh, and the horizontal bucket reinforcement in input Window 1.3. The mandrel diameters from the National Annex to the Eurocode 2 (EN 1992‑1‑1), which you selected for design, are preset.

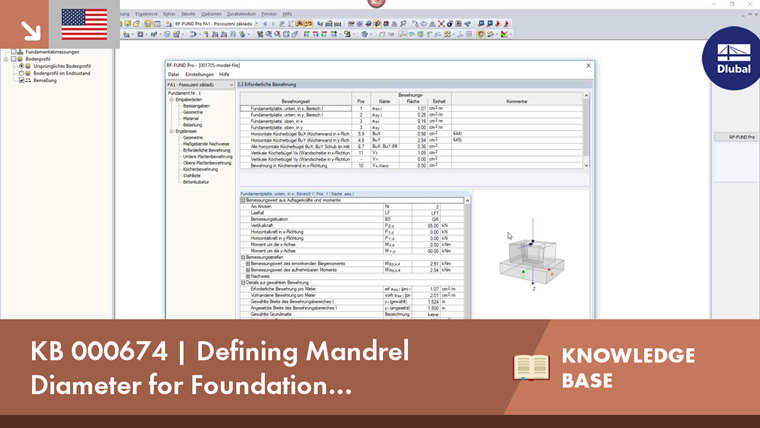

Defining Mandrel Diameter for Foundation Reinforcement
In RF‑/FOUNDATION Pro, the reinforcement to be placed in the foundation slab and, if necessary, the bucket links, is displayed in a 3D rendering and in the reinforcement drawings.
Author
Mr. Meierhofer is the development leader of programs for concrete structures and is available for the customer support team in case of questions related to reinforced and prestressed concrete design.
