Interface with MS Excel/OpenOffice
In RF-/STEEL EC3, you can optimize a cross‑section automatically within the design. For this, select the corresponding cross‑section in Table 1.3 or define variable parameters for a welded cross‑section.

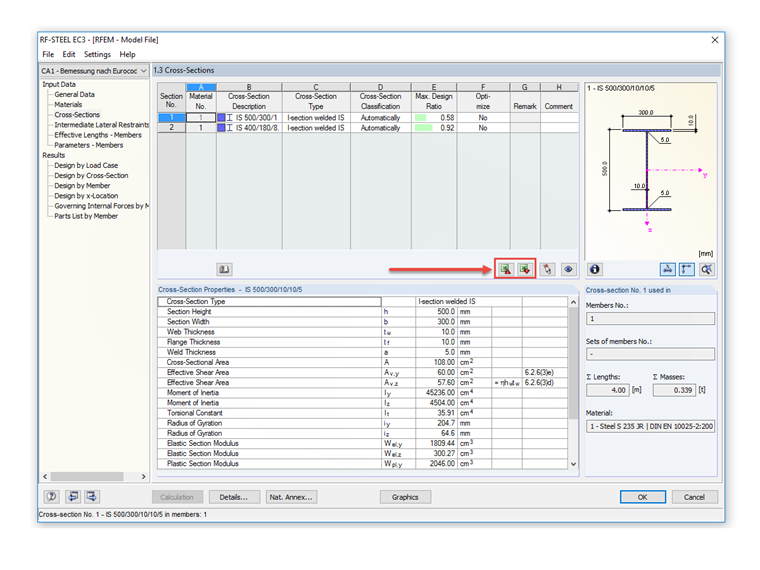

In terms of a further optimization or variant analysis, you can also select completely different cross-sections for the design in the add-on module as they are connected with members in the RFEM/RSTAB model. You can manually overwrite an existing cross-section in column B of Table 1.3 with a desired section. However, in the case of several cross‑sections or long descriptions such as “IU 500/250/16/10.2/200/16/0/0”, this can be time‑consuming. The MS Excel interface, which is consistently available in RFEM/RSTAB, allows you to do this in no time at all, see Figure 1.
Please note: When optimizing a cross‑section, the internal forces are not automatically recalculated with the modified cross‑sections. The user decides which sections are to be transferred to the main program for recalculation.

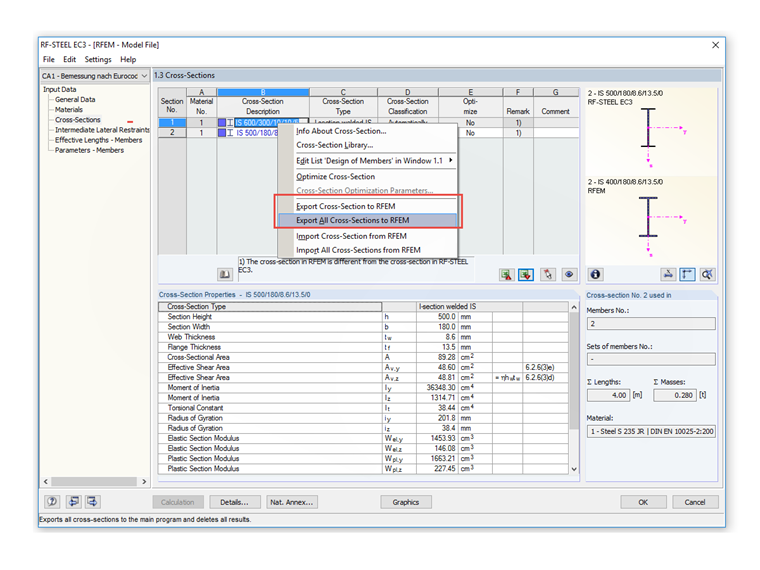

To transfer the cross -section to RFEM/RSTAB, right -click the corresponding cross -section in Window 1.3 - Cross -Sections, see Figure 2.
Because of the modified stiffnesses in the system, the internal forces defined by the optimized cross-sections can differ significantly.
