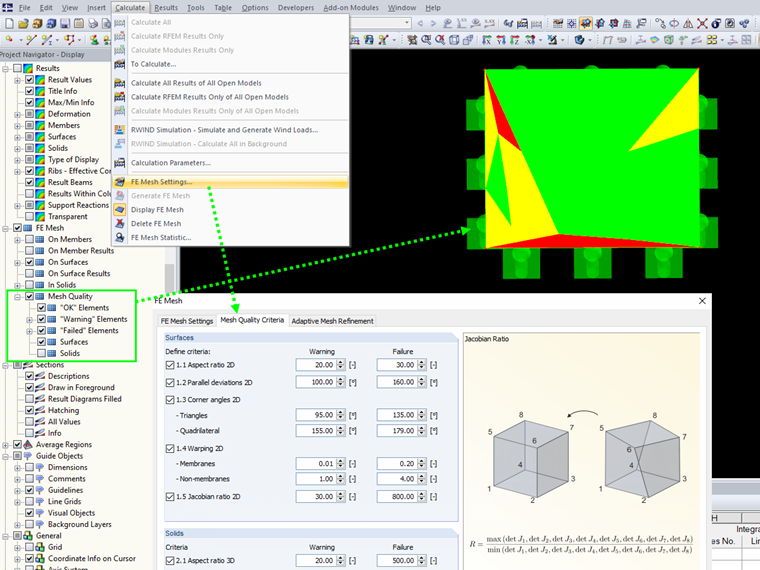

You can display the result graphically. It will be displayed in three different colors to illustrate the different levels of quality. You can edit all the values of the criteria and thus adjust them to your individual needs.
This option improves the evaluation of the FE mesh, for example to find areas with required FE mesh refinements. However, it should not replace the check of the FE mesh by an engineer.
Mr. Lex is responsible for developing products for glass structures and for quality assurance of the RFEM program. He also provides technical support for our customers.
Knowledge Base
Customer Project
Customer Project
Customer Project
Customer Project
The results of solid stresses can be displayed as colored 3D points in the finite elements.
If the check box 'Number of load increments' is deactivated, the number of load increments will be determined automatically in RFEM to solve nonlinear tasks efficiently.
The method used is based on a heuristic algorithm.
With this function, it is possible to refine the FE mesh on surfaces automatically. The mesh refinement is gradual. In each step, the FE mesh is recreated based on an error comparison of the results in the previous calculation step. The numerical error is evaluated from the results of surface elements and is based on the energy formulation of Zienkiewicz-Zhu.
The error evaluation is carried out for a linear static analysis. We select a load case (or load combination) for which the FE mesh is generated. The FE mesh is then used for all calculations.
The Base Data dialog box includes a wide range of standards and the option to create combinations automatically. The following standards are available:
