Creating RSECTION Cross-Section from DXF File
Would you like to create a cross-section from the import of a DXF file? It's very easy. You have the following options:
- Create elements automatically
- Use DXF template lines as centerlines of elements with a defined thickness

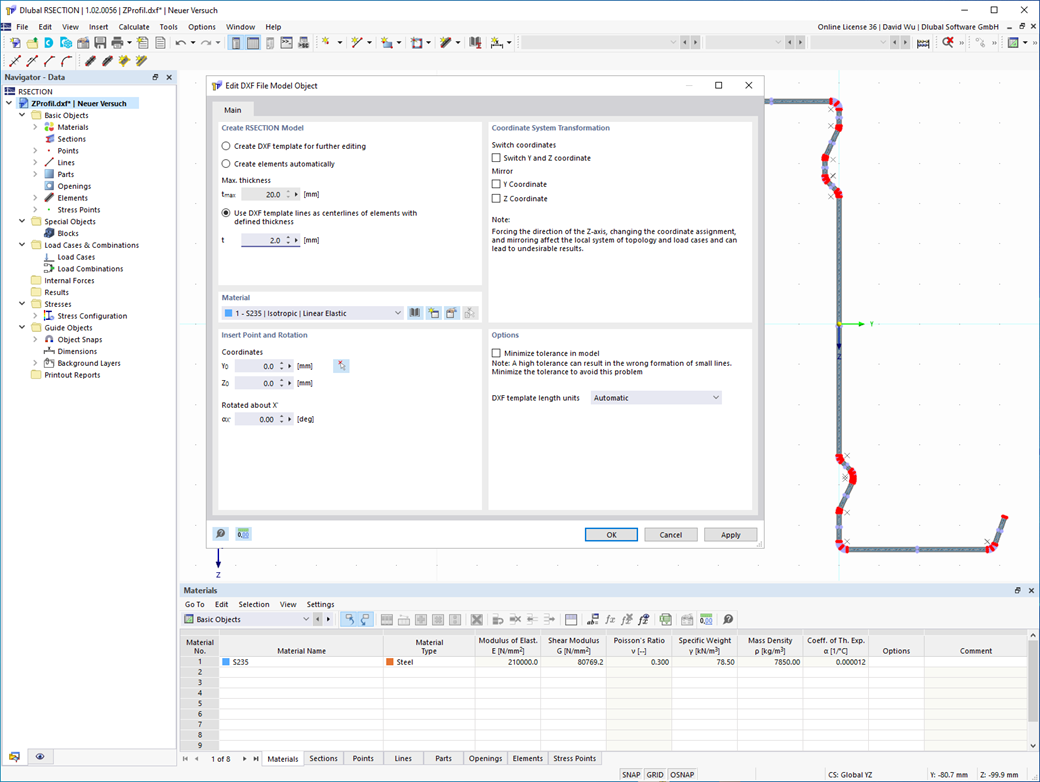

Do you select the option to create the elements automatically? In that case, the program creates the elements and the associated parts for you from the contour of the outline. It only creates the elements not exceeding a definable maximum thickness. Do you have the cross-section geometry as a gravity line model? Then use DXF template lines as centerlines of elements with a defined thickness. Define a thickness that is assigned equally to all elements. Do you miss the "Create elements automatically" and "Create elements on lines" functions? Don't worry, both are also available in the "Edit" menu under "Manipulation."
