Design Analysis
You can display the design results by selecting one or more design situations in the table under the "Timber Design" category, then clicking the

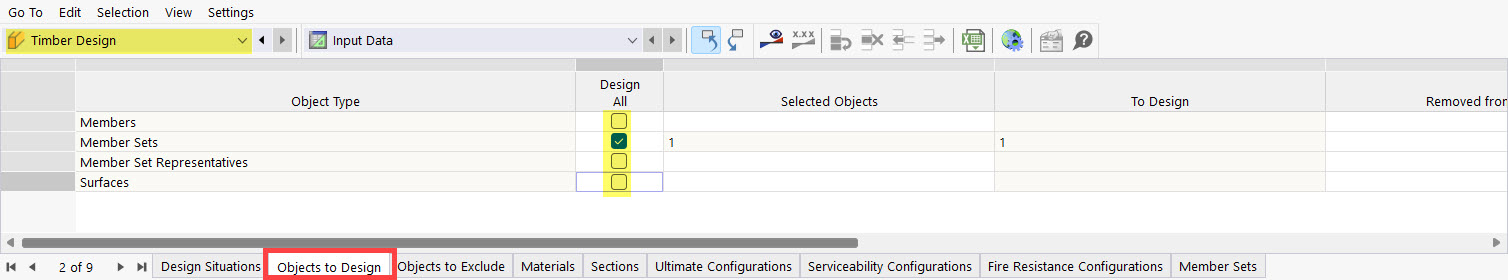

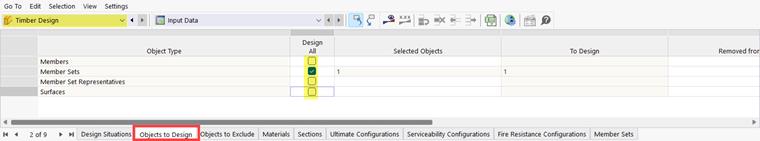

button. In the "Objects to Design" tab, you can also specify which object types are to be designed; for example, only the member set that corresponds to the hip rafter.

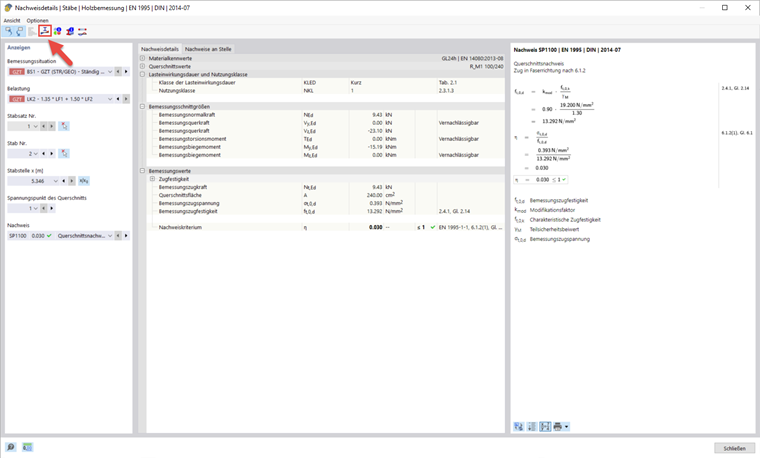

Design Details
After the calculation, an overview of design checks whose design criterion is not fulfilled and other errors that arose in the design checks opens in the table. Click on a table row to mark the most stressed locations of the cross-section in this design with a red arrow. Double-click the relevant table row to open the design details. Here you can see the formulas of the design in the dialog box section on the right and display the calculation with intermediate steps using
.
only displays the design criterion. Use the
button in the upper left corner of the dialog box to display the result diagrams on the cross-section.

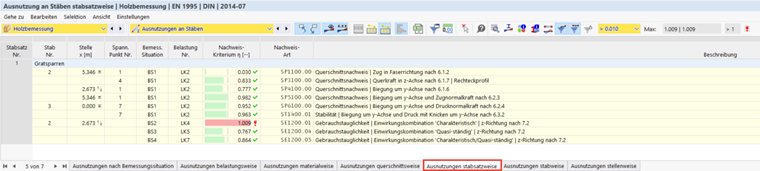

Member Set Design Ratio
The table shows the design results in the "Design Ratio on Members" category, sorted by various criteria. Among other things, the "Design Ratios by Member Set" shows you which design results relating to the member set have been calculated.
