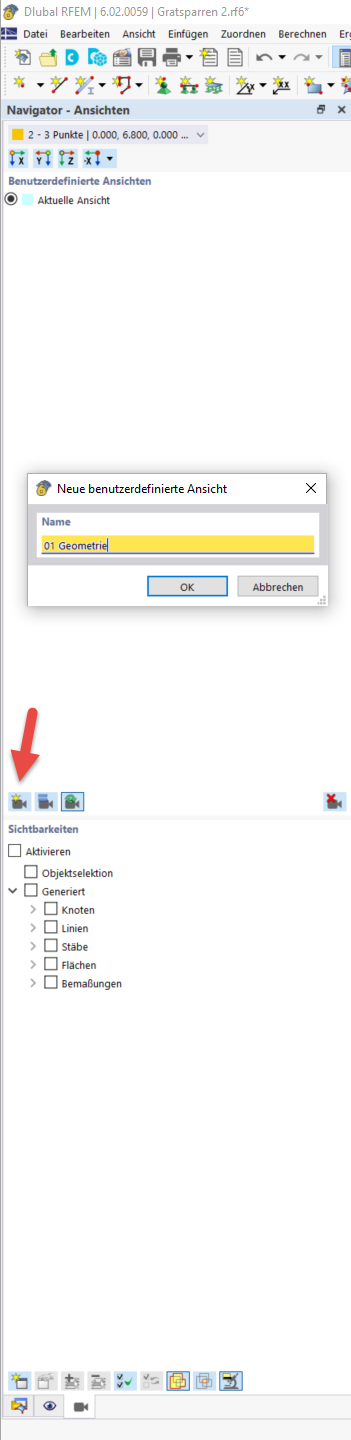

You can define a new user-defined view in the Navigator in the "Views" (
) section using the
button. This corresponds to the current view in the workspace.

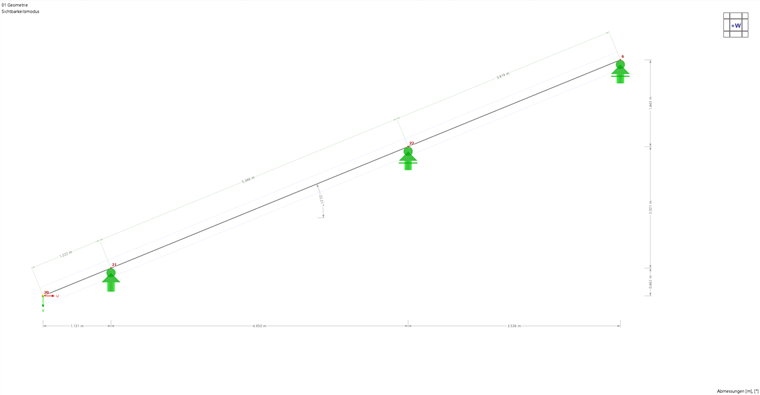

Create a view for the geometry, then deactivate the dimensioning in the "Display" section of the navigator.

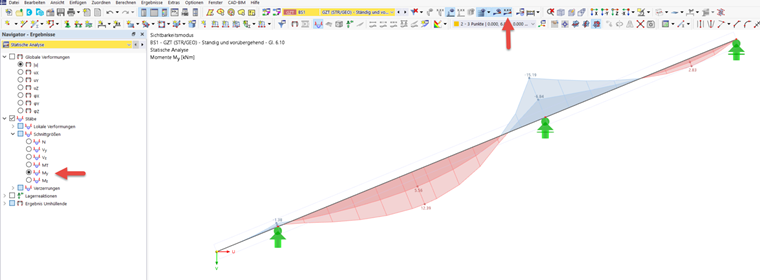

Furthermore, the internal force distributions of the axial and shear forces as well as of the bending moment for the ULS should be transferred to the printout report later on. To do this, select the first design situation and display the result diagrams using
and the result values using
. In the navigator, you can select the individual internal forces in the "Static Analysis" section. Define a separate view for each of them.
