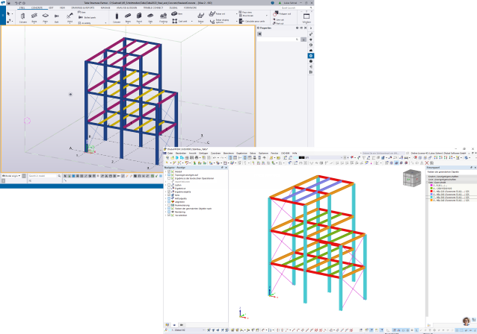

The DSTV format (*.stp) is a file format developed by the German Steel Construction Association (Deutsches STahlbau-Verband, DSTV) and allows for the export of member models.

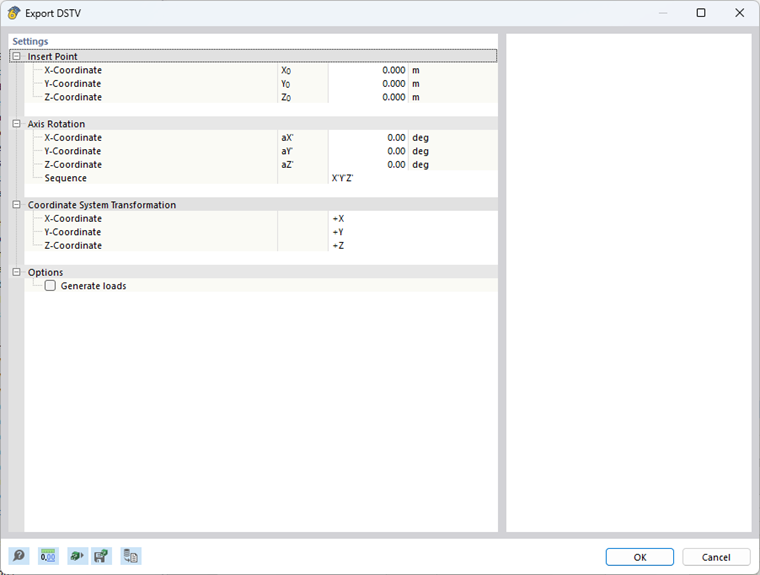

Insert Point
The insert point corresponds to the model coordinates in RFEM. You can manually change the insert point along the X, Y, and Z axes.
Axis Rotation
You can also rotate the model about the global axes. A positive angle rotates the model clockwise.
The sequence of the axis rotations can be defined separately.
Coordinate System Transformation
In the corresponding drop-down menu, you can swap the axes or change the direction of an axis.
Options
Generate Loads
It is possible to export the load data.
