3D Scene in DXF

The 3D scene export provides the option to export the contours of the visible objects in the workspace to DXF format.

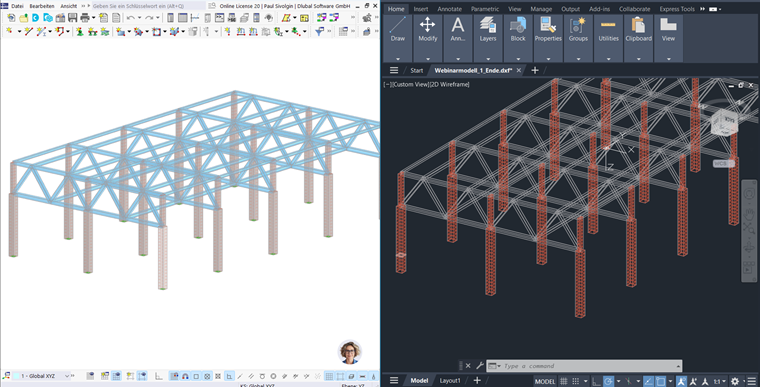

3D scene of a structural project exported as a DXF file. Clarity about the export process to CAD formats.
Export of 3D Scene in DXF Format

Right-click in the workspace to open the shortcut menu. Use the Export 3D Scene to DXF option to create a DXF file containing the visible objects in the workspace.

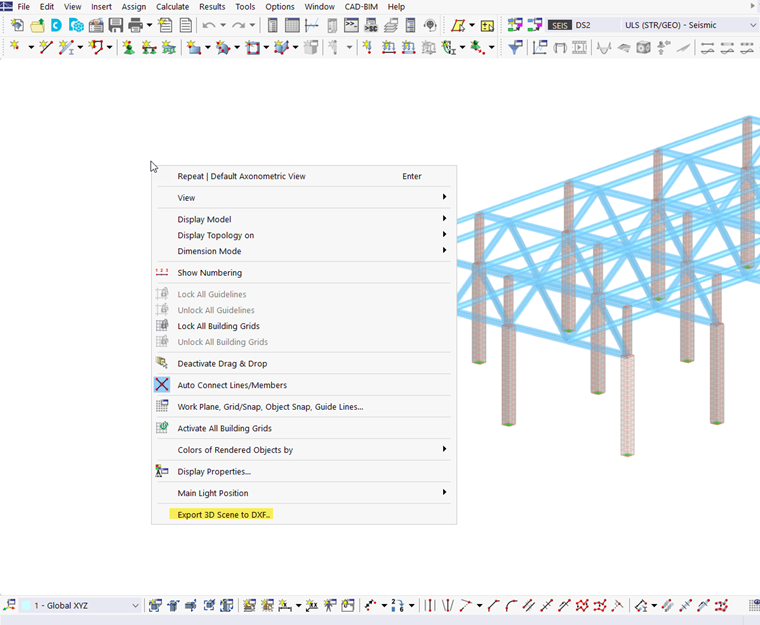

Option to export a 3D scene to DXF format during the design process. Detailed technical specifications and structure visualization.
Export of 3D Scene to DXF Format
Important

To transfer the contours of the objects, it is necessary to display the rendering in the Display Navigator for the respective objects with edges.

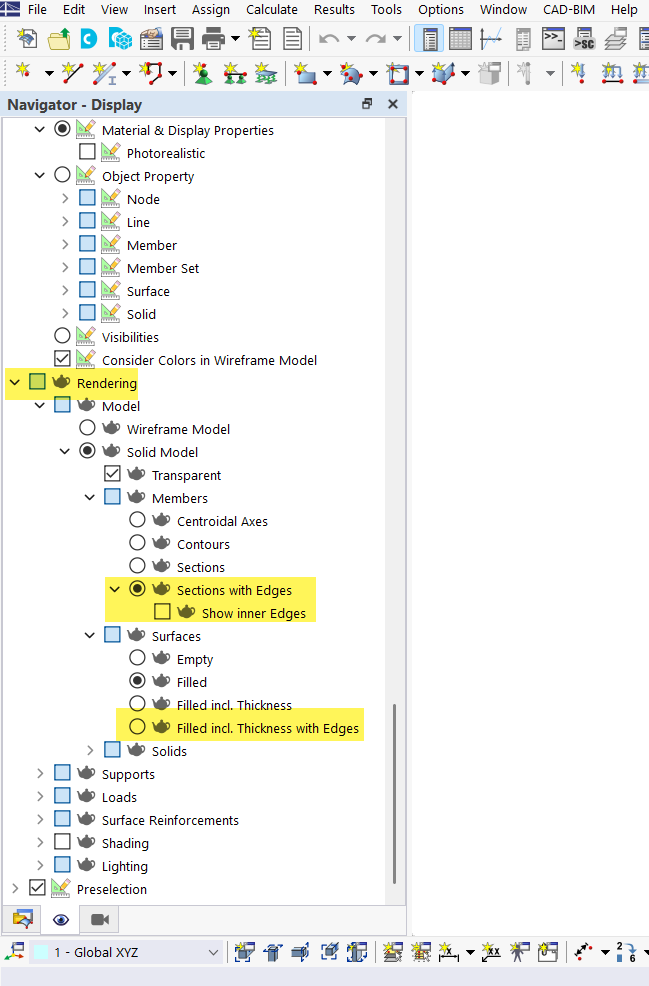

Rendering of edge objects for export as DXF files. Shows details of structured edges for precise display.
Object Display with Edges for DXF Export

This enables the export of cross-section contours.

Exporting boundary lines and cross-section contours in structural analysis software. Technical precision in modeling structural features.
Export of Cross-Section Lines and Contour Details
